Low Loss RF Cable Assembly

Connector material: Copper with Ni plating or gold plating
Impedance: 50 Ohm
Return loss： ≤18dB
Insertion loss: ≤ 0.1dB @ 4GHz

Send Inquiry

Product Introduction

Product introduction:

Our Low loss RF cable assembly is a high-performance solution for applications that require high frequency transmission with minimal signal loss or attenuation. This product is designed with low-loss dielectric materials and precision connectors, which provide exceptional signal integrity, high power handling capabilities, and a durable construction that is resistant to environmental factors such as temperature fluctuations and moisture.

One of the key advantages of our product is its superior low attenuation characteristics. With low attenuation levels, our cable assembly can deliver more

power at higher frequencies, resulting in a greater signal-to-noise ratio and improved overall system performance. Additionally, the precision connectors

used in our cable assembly provide excellent mating reliability and reduce the risk of signal loss due to misalignment or mechanical stress.

The low loss RF cable assembly is ideal for a wide range of applications, including wireless communication systems, radars, satellite communications, cellular

infrastructure, aeronautical and space systems, and military electronic systems. Its high reliability and superior performance make it an excellent choice for any application that requires high frequency transmission with minimal signal loss.

Basic information:

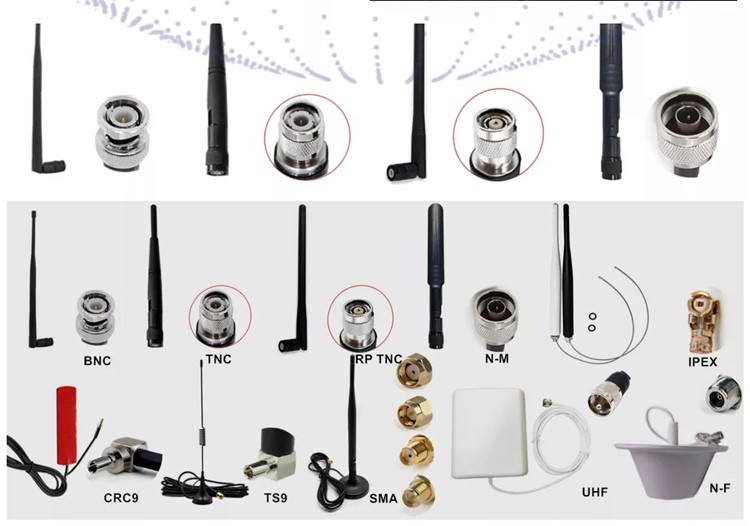

Connector type: SMA, SMB, MCX, MMCX, FAKRK, N-type, BNC, BKHD, AMC, SMP,

Connector configure: straight/ right angle

Cable type: RG142, RG174, RG178, R136, RG-136 double shielded, RG58, Times LMR—195, Times LMR-200, Times LMR-240, Times LMR-405/or customized. low loss, hand-formable semi-rigid options

Cable length: customized

Frequency Range: ~3GHz/~6GHz

Cable conductor material: Pure copper or pure copper with Ni plating

Connector material: Copper with Ni plating or gold plating

Impedance: 50 Ohm

Return loss： ≤18dB

Insertion loss: ≤ 0.1dB @ 4GHz

Environmental

Operating Temperature

-40℃~+120℃

Storage Temperature

-40℃~+120℃

Environmentally Friendly

ROHS Compliant

Popular raw cable category

RG Series	RG Series	Corrugated Cable
RG8	RG8	1/4''S flex(FSJ1-50A)
RG58	RG58	1/2''S flex(FSJ4-50B)
RG174	RG174	1/2'' standard(LDF4-50A)
RG178	RG178	7/8'' standard(LDF5-50A,AVA5-50)
RG316	RG316
RG213
RG214
RG400
RG401(.250'')
RG402(.141'')
RG405(.086'')
