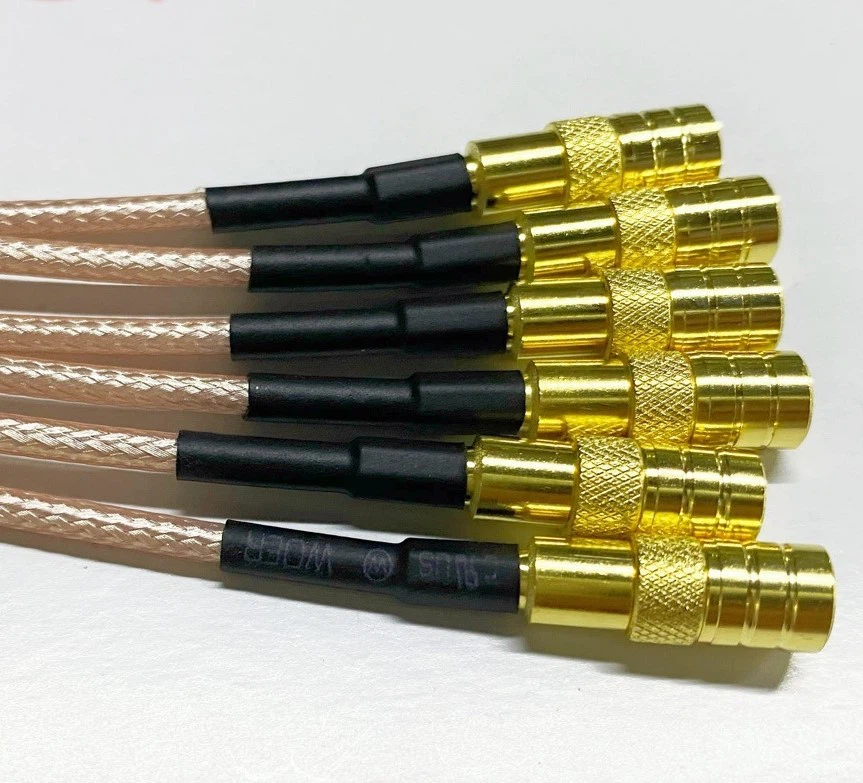

SMB To SMB Cable

Basic description

The SMB to SMB cable consists of SMB connectors at both ends and a coaxial cable in the middle. SMB connector is a push in connector with a stopper, which has the characteristics of small size, easy insertion and removal, good vibration resistance, and small space occupation. There are various types of connectors, such as curved male heads, curved male heads to straight male heads, etc., to meet the needs of different application scenarios. Coaxial cables are responsible for transmitting RF signals, and their internal structure includes an inner conductor, insulation layer, outer conductor, and sheath, which can ensure stable signal transmission.

Feature:

The specific electrical parameters of SMB connectors are as follows:

Characteristic impedance: 50 Ohm

Frequency range: 0-4 GHz

Working voltage: RG178: 250 V(rms),RG316, RG405: 335 V(rms)

Dielectric withstand voltage: RG178: 750 V(rms),RG316, RG405: 1000 V(rms)

Conductor resistance: Inner conductor: ≤ 6.0 m Ω (initial value), outer conductor: ≤ 1.0 m Ω (initial value)

Insulation resistance: ≥ 1000 mΩ

Voltage standing wave ratio: straight type: ≤ 1.30 (typical value), bent type: ≤ 1.35 (typical value)

Pin material: copper with gold plating

Insulation material: PTFE

Wire spec: RG316

Cable length: customized

Standard: UL, IPC-A-620

Certification: RoHS/REACH

Application

SMB to SMB cables are widely used in wireless communication, wireless local area networks, mobile phones PC,GPS, Fields such as network storage devices, medical equipment, lighting equipment, remote controls, etc. Due to its excellent performance and stability, SMB to SMB cables play an important role in these fields, ensuring stable signal transmission and normal equipment operation.

FAQ

1, 3, Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

2,Q: Can you produce custom JVDS cable?

A: We can design and build connector/cable assembly per customer requirement, even can add your logo on the product.

3, Q: What's your Minimum order QTY (MOQ)?

A: Normally 500 PCS, but we can support lower volume for sample stage.

4, Q: Why choose us?What is your advantage?

A: We are professional cable factory in China, with almost 10 years experiences in the cable industry. we have strong engineer team, can provide technical support for customer.

Quality products: High quality raw material

Competitive price: Factory price

OEM service: Offer and welcome OEM service

Thoughtful service : Fast response within 24hours

Quick delivery time: Strict production plan and delivery date

5, Q: How about you product quality?

A: We do pull test, bending test etc in to ensure the product stability, also do 100% function test on the cable in the manufacturing to ensure customer receive good quality goods.

Shipping term:

We ship goods all over the word, via EMS, DHL,UPS.FedEx and TNT etc, customer can specify whichever they prefer.

Packing

1, standard export carton.

2, customized packing is also welcome.

Delivery

1, 5 working days for sample.

2, 7 working days for mass production goods.

3, Express, air, marine and customer specified forwards are available.
