M12 Connector Female

M12 connector female overview

M12*1 thread locking feature, anti-vibration locking design;

Easy quick connect and disconnect coupling;

Pin configurations: 2, 3, 4, 5, 8,12 and 17 positions;

A, B, C, D, K, L, X, S, T coding available;

Meets IP67/IP68 waterproof requirements;

Assembly type and overmold type are available

Temperature Range: -40°C ~ + 105°C ;

Alternative mount arrangements for solder cup or PCB;

Panel Mount and distribution version available;

M12 connector female male gender

(Normally the gender is defined per the pin gender, refer to below picture as a reference)

M2 connector female connector general construction

M12 connector spec

M12 connector female male coding and electric data table

Cable assembly with M12 connector female male

We can sell the connector, also sell the cable assembly with M12 connector

More M2 connector male female options for your choice

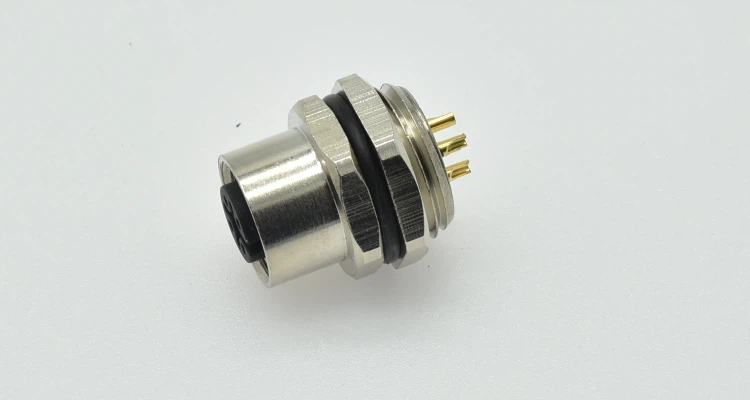

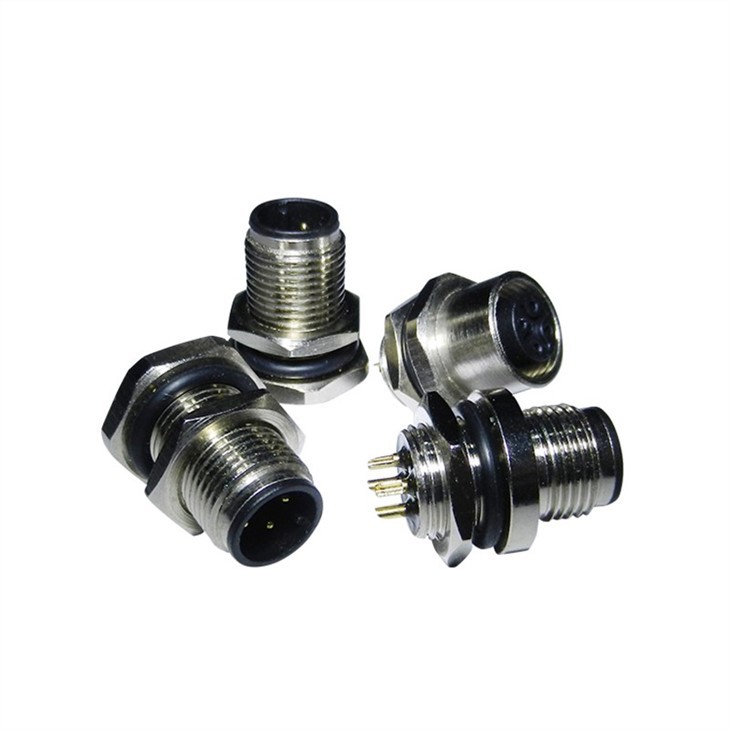

M12 connector panel mount female male

FAQ

1.Q: What is the difference between M12 connector coding?

A-coded mostly used in sensors, actuators, motors, and most other standard devices. it usually between 2 and 12 pins.

B-coded mostly used in network cables for Fieldbus connections, includes systems that operate with Profibus. it typically have between 3 and 5 pins.

C-coded primarily used with AC sensors and actuators, and also have a dual keyway for added security. it have between 3 and 6 pins.

D-coded typically used in network cables for Ethernet and ProfiNet systems. it transfer data up to 100 Mb and typically provides 3 to 5 pins.

S-coded are for ac power application.

T-coded are for dc power application.

X-coded can transfer large amounts of data up to 10Gb at high speeds, it will always have 8 pins.

2,Q: Can you produce custom cable assembly?

A: We can design and build connector/cable assembly per customer requirement, even can add your logo on the product.

3, Q: What’s your Minimum order QTY (MOQ)?

A: Normally 500 PCS, but we can support lower volume for sample stage.

4, Q: What’s the lead time (L/T ) of your manufacturing?

A: We provide short L/T service. Sample 1 wks, mass production 4 wks.

5, Q: How about you product quality?

A: We do pull test, bending test etc in to ensure the product stability, also do 100% function test on the cable in the manufacturing to ensure customer receive good quality goods.
