2.5 Pitch Connector
Voltage rating: 250V AC/DC
Temperature range: -25C~+85C
Contact resistance: 10mΩ Max
Insulation resistance: 1000mΩ Min
Overview
The 2.5 Pitch Connector is made of high quality materials and have the characteristics of environmental protection and non-toxic. Secondly, the pre-tinned plating holes on our boards make it very easy to solder components and sensors for your project. Lastly, our products are inexpensive and good quality, we welcome customers' purchase or inquiry.
Our strict quality assurance system and advanced assembly process provide a solid guarantee for the stable performance of our 2.5 Pitch Connector. The company has two core competencies by continuously strengthening R&D innovation and scientifically optimizing project management. Our company pursues the future development direction and actively innovates and develops in the market and technology.
Our 2.5 pitch connector is compatible with JST XH connector
Current rating: 3.0A
Voltage rating: 250V
Temperature range: -25C~+85C
Contact resistance: 10mΩ Max
Insulation resistance: 1000mΩ Min
Withstanding voltage: 1000V AC/minute
Wire range: AWG#22-28AWG
Wafer applicable PCB thickness: 1.6mm
Certification: UL, RoHS, ISO
2.5 pitch connector spec
Standard | UL |
Gender | Male / Female |
Number of Contacts | 2 pin, 3 pin, 4 pin, 5 pin, 6 pin, 7 pin, 8 pin, 9 pin, 10 pin ,11 pin, 12pin, 13 pin, 14 pin, 15 pin, 16 pin |
Port rows | Single raw |
Termination | Crimping for plug connector, soldering for wafer |
Connector material | PA66, UL94 V-0 / V-2 |
Terminal material | Phosphor Bronze |
Plating | Tin |
Connector type | Housing, Wafer & Terminal |
Color | Nature, white, custom color is acceptable |
Application | Power, Wire-to-Board, Wire-to-Wire |

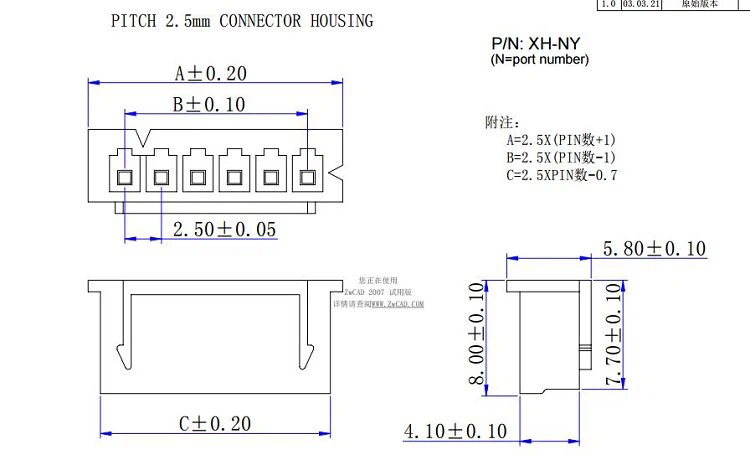

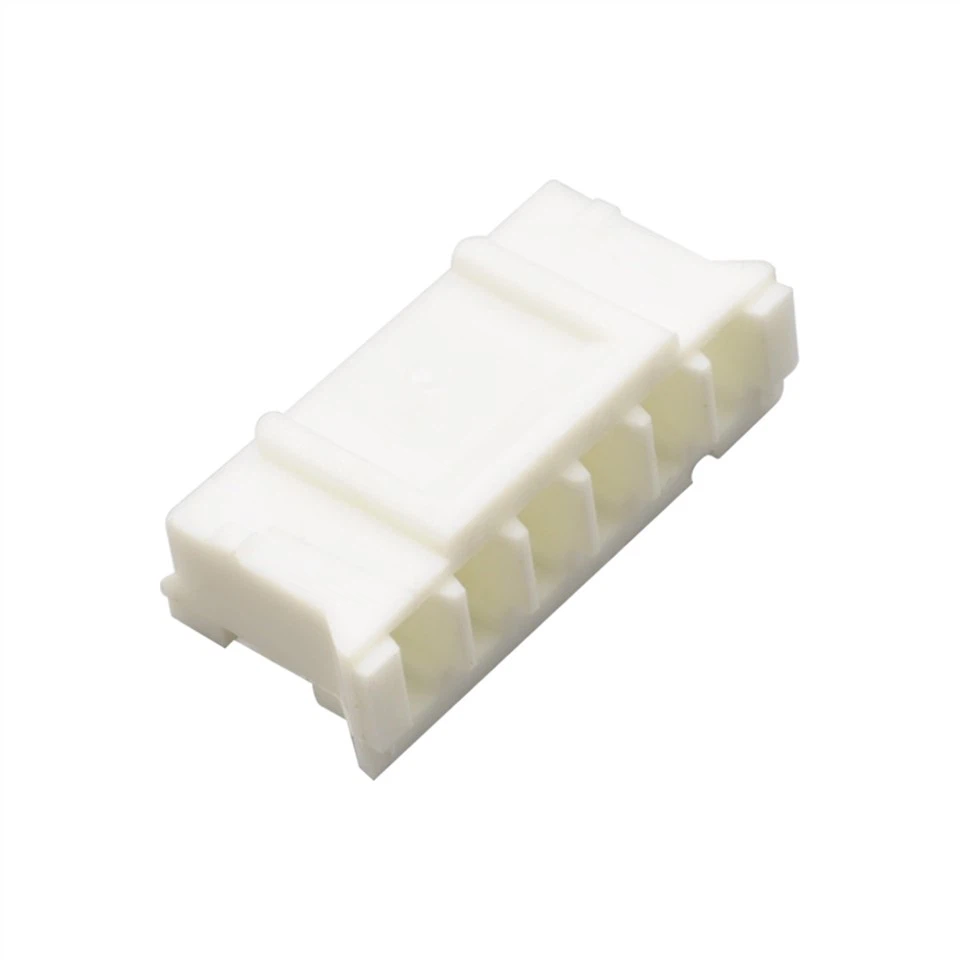

2.5 connector plug drawing
Plastic material: PA66,
Flammability: UL 94 V-0, or UL 94V-2
Color: white, nature

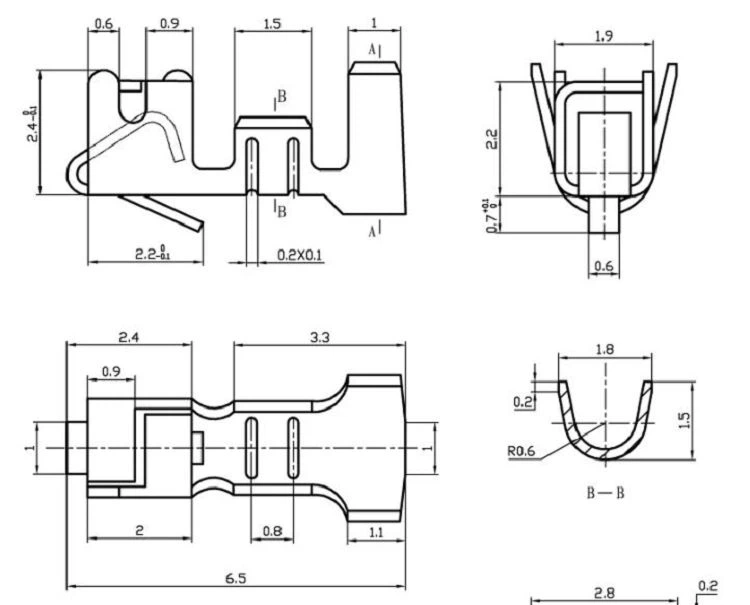

Suitable female terminal
Material: Phosphor Bronze
Plating: Tin

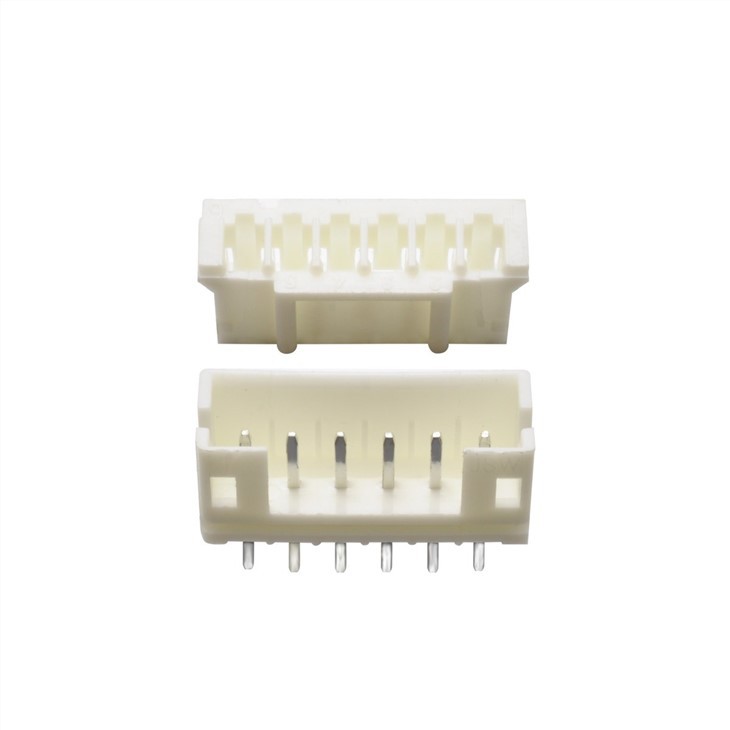

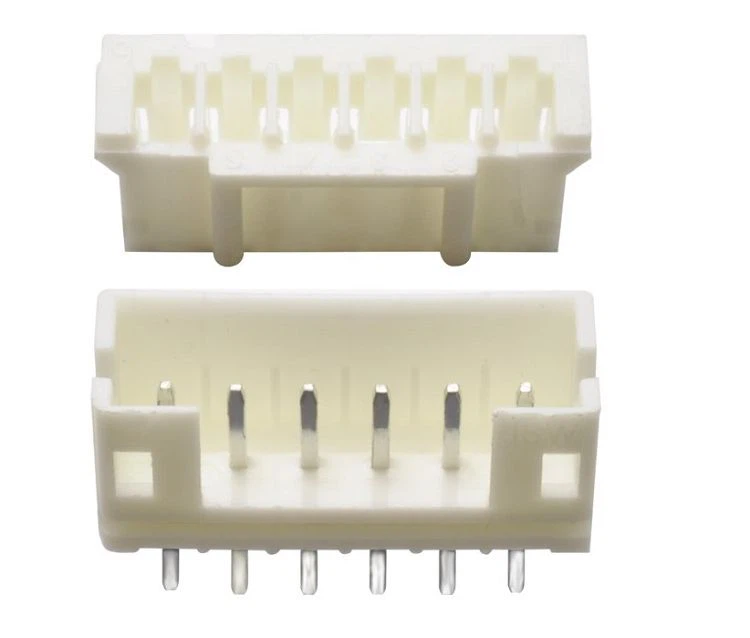

2.5 connector wafer
Straight type wafer

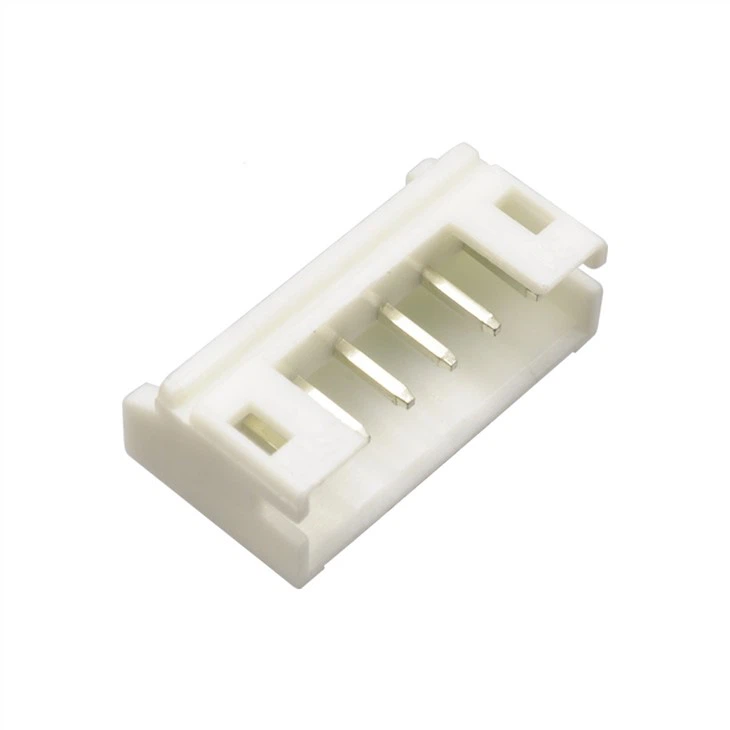

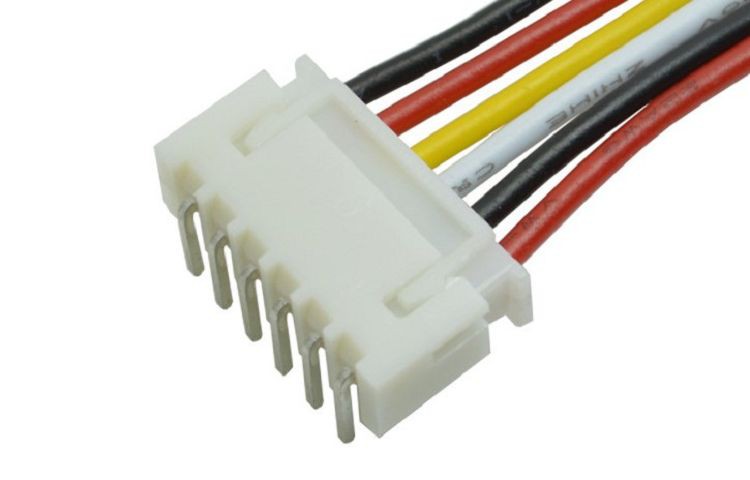

Right angle wafer
2.5 pitch connector application
Consumer electric
Automotive electric
Medical electric
Communication equipment
Industrial equipment
Househood appliance
FAQ
1. Q: Can you tell me more about your company?
A: We are professional cable factory in China, with almost 10 years experiences in the cable industry. we have strong engineer team, can provide technical support for customer.
2,Q: Can you produce custom cable assembly?
A: We can design and build connector/cable assembly per customer requirement, even can add your logo on the product.
3, Q: What’s your Minimum order QTY (MOQ)?
A: Normally 500 PCS, but we can support lower volume for sample stage.
4, Q: What’s the lead time (L/T ) of your manufacturing?
A: We provide short L/T service. Sample 1 wks, mass production 4 wks.
5, Q: Why choose us? What is your advantage?
A: We are professional cable factory in China, with almost 10 years experiences in the cable industry. we have strong engineer team, can provide technical support for customer.
Quality products: High quality raw material
Competitive price: Factory price
OEM service: Offer and welcome OEM service
Thoughtful service : Fast response within 24hours
Quick delivery time: Strict production plan and delivery date.
6, Q: How about your product quality?
A: We do pull test, bending test etc in to ensure the product stability, also do 100% function test on the cable in the manufacturing to ensure customer receive good quality goods.
Shipping term:
We ship goods all over the word, via EMS, DHL,UPS.FedEx and TNT etc, customer can specify whichever they prefer.
Packing
1, standard export carton.
2, customized packing is also welcome.
Delivery
1, 5 working days for sample.
2, 7 working days for mass production goods.
3, Express, air, marine and customer specified forwards are available.
