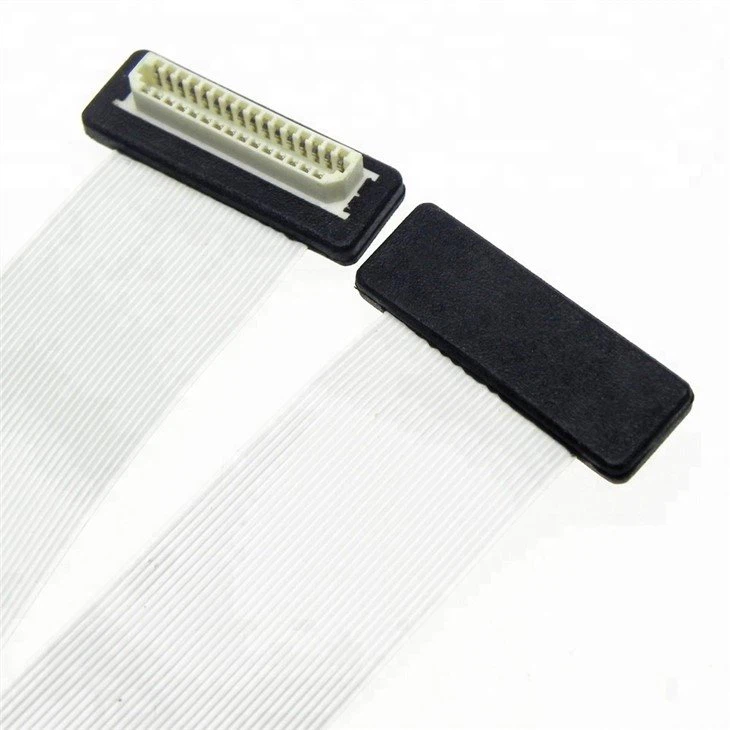

LVDS Cable Harness

Product Introduction:

LVDS Cable Harness is a high-speed, long-distance digital interface for serial communication (sending one bit at time) over two copper wires (differential) that are placed at 180 degrees from each other. This configuration reduces noise emission by making the noise more findable and filterable. LVDS is often used in SerDes configurations.

Basic information:

Connector: we propose local source or customer specified MGF and MPN

Pin number: per customer requirement

Wire: UL wire, ribbon cable, FFC

Water proof level: N/A

Current rating range: custom

Voltage rating: custom

Cable length: custom

Temperature rating: -40 to 105 °C

Standard: IPC-A-620

Certification: RoHS/REACH/UL/CAS

More service: OEM/ODM

More detail.

Wire Type	UL wire, ribbon cable, FFC
Wire Size	We propose or customer specify
Wire Cores	N/A
Conductor	Bare Copper, Tinned Copper, Silver Plated
Rate Temperature	-20℃ to 80℃, 105℃, 125℃, 180℃, 220℃, 300℃
Certification	UL/CSA
Connector Type	TE, Molex, JST, Delphi, Yazaki, JAE, FCI, Amphenol or others
Protection wrap	Tape, shrink tube, PVC tube
Protection	Low Smoke Halogen-Free
Plug Molds	We have over molding capability and connector OEM/ODM capability
Testing	100% function tested
Industries	Electronics, Machines, telecommunication
We Provide Custom Service

Application

1. Display / Notebook PC & Tablet PC / Flat panel display

2. Smart phone / Cell Phone

3. Flat screen TV / Professional TV

4. Printer / Scanner / FAX machine / Copier

5. Sound Box / Acoustics

6. MP3, MP4, Game Player

7. CD/ DVD

8. Digital camera/CCTV camera/Drones/Home Appliance

9. Robot / Industrial / Projector / Handy terminal / Amusement

10. Car electronics

11. Toy for children

12. AV equipment / Medical equipment / Digital measurement instrument

Features:

• High Data Rate: LVDS Cable Harness supports high-speed data transmission, making it suitable for applications that require rapid data transfer.
• Noise Immunity: LVDS technology minimizes electromagnetic interference, ensuring clean and reliable signal transmission.
• Compact Design: These cable harnesses are compact, making them ideal for applications with limited space.
• Customization: LVDS Cable can be tailored to specific lengths and connectors to suit your application's requirements.

• Durability: Designed to withstand challenging environmental conditions, ensuring a long product life.

LVDS Cable Harnesses are a vital component in various electronic systems, ensuring high-speed data transmission, noise immunity, and durability. Our manufacturing facility is well-equipped to meet your specific needs and provide top-quality cable harnesses for your applications.
