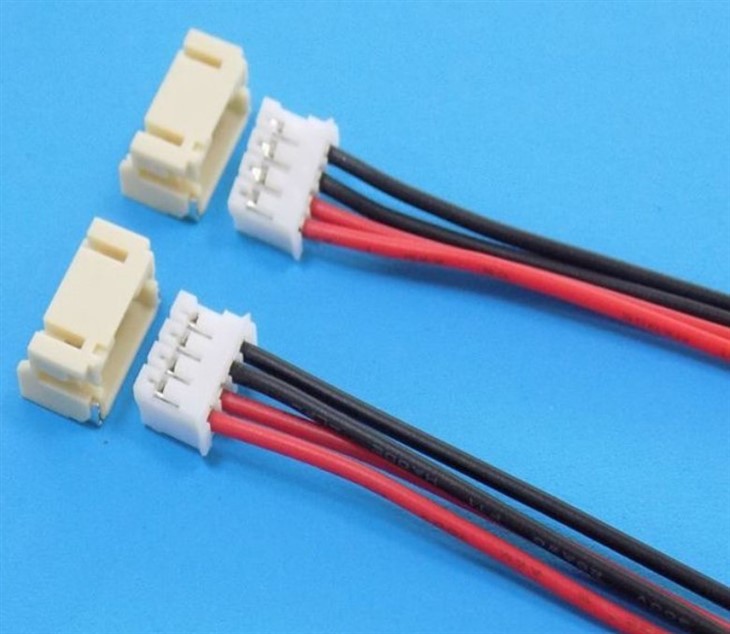

OEM Wire Harness JST PH Connector
Pitch: 2.0mm,2~16 pin
product overview
OEM wire harness JST PH connector is designed to meet the demand for the high-density connection between internal wires to PC boards.
The advantage of this series connector: compact, highly reliable and low in cost.
Pin material: copper with Ni plating
Connector housing material: PA
Connector brand: JST or equivalent
Wire spec: UL1007/1569/1061/1015/1571 etc., ribbon cable, multiconductor cable
Gender: male, female
Connector pitch: 2.0
Cable length: customized
Temperature rating: -25 to 85 °C
Standard: UL, IPC-A-620
Certification: RoHS/REACH
Product Features:
- Wide Range of Applications: The OEM wire harness JST PH connector is suitable for use in a wide range of applications, including consumer electronics, industrial machinery, automotive, and more.
- Secure and Reliable Connection: The cable is equipped with precision-molded contacts that provide a secure and reliable connection, reducing the risk of accidental disconnection.
- Flexibility: The flexible PVC insulation allows for easy installation and routing, accommodating different design requirements.
- Multiple Color Options: With multiple insulation color options, the JST PH Cable simplifies identification and organization of circuits during assembly and maintenance.
- We provide custom wire harness design and manufacturing service with any customer specified connector, wire/cable.
Product Applications:
- The PH series connectors, especially the PH2.0 connectors, are JST's classic series and widely recognized by the market. This connector offers four types for customers to choose from: straight pin, bent pin, upright pin, and horizontal pin, suitable for applications with a current of 2A and a voltage below 100V. The PH2.0 connector consists of three main categories: rubber shell, needle socket, and terminal. It has three connection methods: direct insertion, bending insertion, and surface mount, as well as buckle and non buckle options. Its plastic material can reach a high fire resistance level, and the materials used include phosphor bronze, surface tin plating, and the needle holder has a high temperature resistance of over 260 degrees Celsius. This type of connector is widely used in household appliances and smart devices, such as Zhejiang Lianhe Electronics Co., Ltd. which specializes in producing alternatives to PH2.0 connectors, as well as other types of connectors.
In addition, the design and materials of the PH series connectors make them an ideal choice for household appliances and smart devices. It has a high fire rating and good high temperature resistance, which can meet the safety and reliability requirements of connectors during the operation of these devices. At the same time, the diversity and customization characteristics of PH2.0 connectors also enable them to adapt to the needs of different brands and models of electrical equipment, thereby improving the compatibility and convenience of equipment use
About our capability
We are professional cable assembly factory located in Huizhou city, Guangdong province, China. We produce all kinds of cable assemblies and wire harnesses. We can supply cable with different connector brand such as Molex, TE, Amphenol, SJT and HRS etc. Also we can supply custom connector solutions, overmold design and custom raw cable solutions to meet different customer requirements. OEM wire harness JST PH connector is wildly used in differnt area such as consumer, white goods etc.
