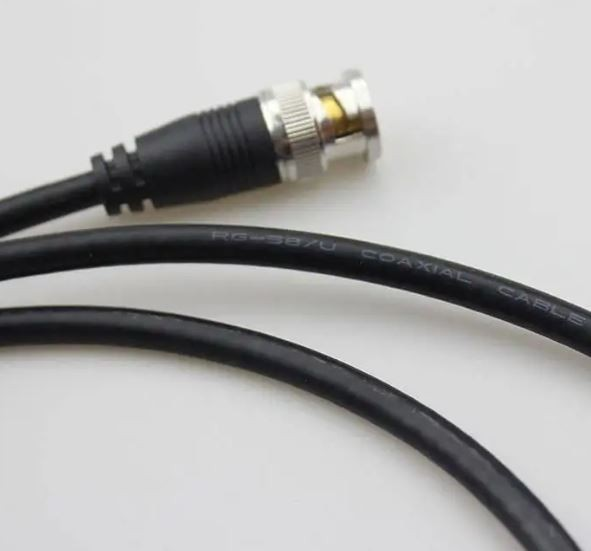

BNC Camera Cable

‌BNC Camera Cables – Premium Video Transmission Solutions for Surveillance & Broadcast‌

‌Product Overview‌

Our BNC camera cables deliver crystal-clear video signals for mission-critical surveillance, broadcast, and industrial imaging systems. Engineered with precision-machined connectors and double-shielded coaxial construction, these cables ensure minimal signal loss and maximum EMI/RFI protection for resolutions up to 4K@60Hz.

‌Key Features‌

High-Definition Performance‌

Supports HD-SDI, 4K/UHD, and analog video signals

Bandwidth: 0-6 GHz

Low attenuation: <1.2 dB/m @ 3 GHz

‌Robust Shielding‌

Dual-layer shielding (foil + 96% braid coverage)

EMI/RFI noise rejection >90 dB

Corrosion-resistant gold-plated contacts

Secure Connectivity‌

True 75Ω impedance-matched BNC connectors

Bayonet locking mechanism for vibration-proof mating

Nickel-plated housing with strain relief

‌Durable Build Quality‌

Temperature range: -30°C to +80°C

UV-resistant PVC jacket (optional PUR for harsh environments)

Flex life: >5,000 bends (tested per IEC 61169-8)

‌

‌Technical Specifications


‌Available Configurations‌

Standard Lengths: 1m, 3m, 5m, 10m, 15m, 30m

Custom Lengths: 0.5m to 30m (cut-to-order)

Connector Options: Right-angle BNC, Mini-BNC, Locking BNC

Jacket Colors: Black, White, Gray (custom colors available)

Certifications & Compliance‌

RoHS & REACH compliant

UL 2556/CL3R rated (for in-wall installation)

CE/EMC Directive 2014/30/EU

Flame-retardant: IEC 60332-1

Applications‌

• CCTV & IP surveillance camera systems

• Broadcast studio equipment (HD cameras, switchers)

• Medical imaging devices

• Industrial inspection cameras

• Video production & live streaming rigs

FAQ

1, Q: Are you trading company or manufacturer?

A: We are professional cable factory in China, with almost 10 years experiences in the cable industry. we have strong engineer team, can provide technical support for customer.

2,Q: Can you produce custom M12 connector cable?

A: We can design and build connector/cable assembly per customer requirement, even can add your logo on the product.

3, Q: What's your Minimum order QTY (MOQ)?

A: Normally 500 PCS, but we can support lower volume for sample stage.

4, Q: What's the lead time (L/T ) of your manufacturing?

A: We provide short L/T service. Sample 1 wks, mass production 4 wks.

5, Q: How about you product quality?

A: We do pull test, bending test etc in to ensure the product stability, also do 100% function test on the cable in the manufacturing to ensure customer receive good quality goods.

Shipping term:

We ship goods all over the word, via EMS, DHL,UPS.FedEx and TNT etc, customer can specify whichever they prefer.

Packing

1, standard export carton.

2, customized packing is also welcome.

Delivery

1, 5 working days for sample.

2, 7 working days for mass production goods.

3, Express, air, marine and customer specified forwards are available.
