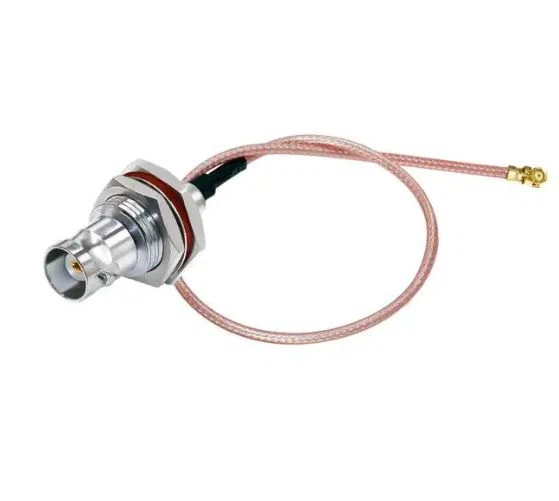

BNC To Ipex Cable

Basic description

This BNC to Ipex cable is a precision-engineered coaxial cable assembly designed to bridge standard BNC interfaces with compact IPEX (IPX) connectors. Ideal for applications requiring high-frequency signal transmission between industrial equipment and embedded systems, such as Wi-Fi modules, GPS devices, drones, and IoT hardware.

Feature:

‌High-Frequency Performance‌
• Frequency Range: DC – 6 GHz
• Impedance: 50 Ohm (±5%)
• VSWR: ≤1.5:1 (Up to 3 GHz)

‌Robust Construction‌
• BNC Connector: Gold-plated brass, 75Ω/50Ω selectable (default 50Ω)
• IPEX Connector: IPEX MHF® series (IPEX-1, IPEX-4 compatible)
• Cable: RG178/U (0.8mm OD) or RG316 (2.2mm OD) options

Durability & Flexibility‌
• Bend Radius: ≥4× cable diameter
• Operating Temperature: -40°C to +85°C
• Mating Cycles: ≥500 (IPEX connector)

Device Applications‌

Raspberry Pi/Arduino RF modules

4G/5G cellular antennas

UAV (Drone) FPV systems

Automotive telematics

‌Customization Services‌

Connector plating (Gold/Nickel)

Cable length (±1mm tolerance)

IPEX connector generation (1/4/5)

Custom impedance (50Ω/75Ω)

‌Installation Notes‌ of BNC to ipex cable

‌

Avoid sharp bends near IPEX connector to prevent pin deformation.

Torque limit for IPEX mating: 0.3 N·m max.

Use SMA-to-BNC adapters for 75Ω video systems.

FAQ

1, Q: Are you trading company or manufacturer?

A: We are professional cable factory in China, with almost 10 years experiences in the cable industry. we have strong engineer team, can provide technical support for customer.

2,Q: Can you produce custom M12 connector cable?

A: We can design and build connector/cable assembly per customer requirement, even can add your logo on the product.

3, Q: What's your Minimum order QTY (MOQ)?

A: Normally 500 PCS, but we can support lower volume for sample stage.

4, Q: What's the lead time (L/T ) of your manufacturing?

A: We provide short L/T service. Sample 1 wks, mass production 4 wks.

5, Q: How about you product quality?

A: We do pull test, bending test etc in to ensure the product stability, also do 100% function test on the cable in the manufacturing to ensure customer receive good quality goods.

Shipping term:

We ship goods all over the word, via EMS, DHL,UPS.FedEx and TNT etc, customer can specify whichever they prefer.

Packing

1, standard export carton.

2, customized packing is also welcome.

Delivery

1, 5 working days for sample.

2, 7 working days for mass production goods.

3, Express, air, marine and customer specified forwards are available.
