SMCX To SMA Cable

Basic description

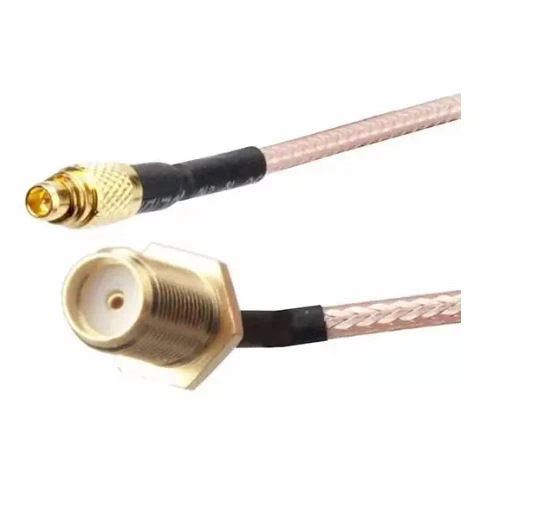

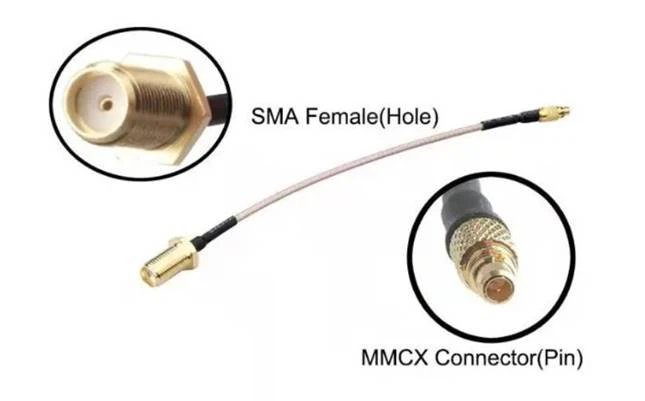

The SMXC to SMA cable contain SMCX connector and SMA on both ends, the wire spec is RG316.

Feature:

Inner conductor: silver plated copper or beryllium bronze with gold plating, contact resistance ≤ 6m Ω, improving high-frequency signal transmission efficiency

Outer conductor: silver plated copper wire braided layer, with a diameter of about 1.95mm, enhancing shielding performance

Insulation: polytetrafluoroethylene (PTFE), thickness 1.53mm, high temperature resistance and low dielectric loss

Connector housing: brass or stainless steel plated with nickel/gold, suitable for high and low temperature environments

Impedance: Standard 50 Ω, matching RF signal transmission requirements

Frequency range: DC-6GHz (conventional wire), some high specification wires support up to 12.4GHz

Standing Wave Ratio (VSWR): Straight head type ≤ 1.3:1, elbow type ≤ 1.5:1, reducing signal reflection loss

Insertion loss: ＜ 0.15dB at 6GHz frequency, ensuring signal transmission efficiency

Voltage resistance level: RG316 wire 750V rms, RG405 wire 1000V rms

Plug and unplug lifespan: ≥ 500 times, ensuring long-term stability

Bending radius: ≥ 15mm, avoid excessive bending of the wire

Tensile strength: 3.4kg (RG316), meeting the needs of industrial scenarios

Attenuation: RG316 wire is 0.93dB/m @ 1GHz, RG405 wire is 0.29dB/m @ 100MHz

Temperature range: Conventional type -40 ℃ to+85 ℃

Cable length: customized

Standard: UL, IPC-A-620

Certification: RoHS/REACH

Custom cable assembly is available for customers.

Application

SMCX to SMA cable is wildly used in many fields. Wireless communication module (such as Wi Fi, Bluetooth, 5G module)

Unmanned aerial vehicle image transmission equipment

Testing instruments and data acquisition equipment

Industrial and Embedded Devices

FAQ

1, Q: Are you trading company or manufacturer?

A: We are professional cable factory in China, with almost 10 years experiences in the cable industry. we have strong engineer team, can provide technical support for customer.

2,Q: Can you produce custom M12 connector cable?

A: We can design and build connector/cable assembly per customer requirement, even can add your logo on the product.

3, Q: What's your Minimum order QTY (MOQ)?

A: Normally 500 PCS, but we can support lower volume for sample stage.

4, Q: What's the lead time (L/T ) of your manufacturing?

A: We provide short L/T service. Sample 1 wks, mass production 4 wks.

5, Q: How about you product quality?

A: We do pull test, bending test etc in to ensure the product stability, also do 100% function test on the cable in the manufacturing to ensure customer receive good quality goods.

Shipping term:

We ship goods all over the word, via EMS, DHL,UPS.FedEx and TNT etc, customer can specify whichever they prefer.

Packing

1, standard export carton.

2, customized packing is also welcome.

Delivery

1, 5 working days for sample.

2, 7 working days for mass production goods.

3, Express, air, marine and customer specified forwards are available.
