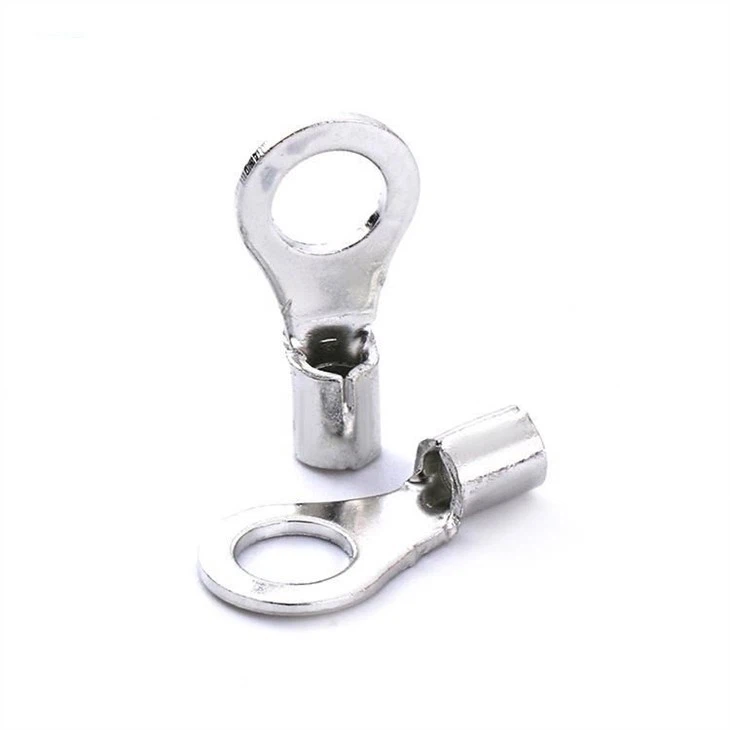

Copper Ring Lugs Uninsulated
Description
Our Copper Ring Lugs Uninsulated are highly conductive contact materials, widely used in crimping work. They are manufactured to the best industry standards and are ideal for large power consumption or grounding applications. In addition, these wire pieces can be easily crimped or welded to the wire, with a burr free finish, and are widely used in various battery, inverter, solar panel, electrical and other applications.
Features
When in use, one end of these Copper Ring Lugs Uninsulated is welded or crimped to contain the cable, and the other end is fixed on the matching terminal with bolts or spring clips, which can achieve a very stable use effect. They are made of annealed electrolytic grade copper, with high conductivity and thermal conductivity, and can be well welded. Moreover, it is very solid after welding and will not be easily loosened, requiring less maintenance.
Details
Terminal Material: | Copper |
Plating: | Tin plated |
Insulation Material: | None |
Type: | RNB |
Feature: | Fixable, good elasticity, unable broken, high durability |
Certificate: | RoHS, CE， UL |
Application: | Electricity, communications, machinery, construction, petroleum, chemical, aviation, transportation, railway, transportation, automobile manufacturing, household appliances, electrical installations, computers etc. |
Color: | Red, blue, black, yellow |
Function: | Electrically conductive and connection |
Working Temperature: | -40℃-105 ℃ |
MAXIMUM ELECTRIC CURRENT:
A.W.G. | 22 | 20 | 18 | 16 | 14 | 12 | 10 | 8 | 6 | 4 | 2 | 1/0 | 2/0 | 3/0 | 4/0 | 250 | 300 | 350 | 400 | 500 | 600 |
AMP. | 9 | 12 | 17 | 18 | 30 | 35 | 50 | 70 | 95 | 125 | 170 | 230 | 265 | 310 | 360 | 405 | 445 | 505 | 545 | 620 | 690 |
Material: copper
Plating: Tin
Wire Range: AWG22 to AWG500/600MCM
Conductor section:0.5-1.5mm2 (A.W.G 22-16) 1max=19A | ||||||||
Item No | American | d2(mm) | Dimension(mm) | |||||
Bolt number | B | L | F | E | D | d | ||
RNB1.25-3.2 | #4 | 3.2 | 5.7 | 12.6 | 4.95 | 4.8 3.4 1.7 | ||
RNBS1.25-3.5 | #6 | 3.7 | 5.7 | 12.6 | 4.95 | |||
RNBM1.25-3.5 | #6 | 3.7 | 6.6 | 14.4 | 6.3 | |||
RNBL1.25-3.5 | #6 | 3.7 | 8 | 15.8 | 7 | |||
RNBS1.25-4 | #8 | 4.3 | 6.6 | 14.4 | 6.3 | |||
RNBL1.24-4 | #8 | 4.3 | 8 | 15.8 | 7 | |||
RNB1.25-5 | #10 | 5.3 | 8 | 15.8 | 7 | |||
RNBL1.25-5 | #10 | 5.3 | 9.8 | 18 | 8.5 | |||
RNBS1.25-6 | 1/4 | 6.4 | 9.8 | 18 | 8.5 | |||
RNB1.25-6 | 1/4 | 6.4 | 11.6 | 21.8 | 11.1 | |||
RNB1.25-8 | 5/16 | 8.4 | 11.6 | 21.8 | 11.1 | |||
RNB1.25-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 | |||
RNB1.25-12 | 1/2 | 13 | 19.2 | 31 | 16.5 | |||
Conductor section:1.5-2.5mm2 (A.W.G 16-14) 1max=27A | ||||||||
Item No | American | d2(mm) | Dimension(mm) | |||||
Bolt number | B | L | F | E | D | d | ||
RNB2-3.2 | #4 | 3.2 | 6.6 | 12.3 | 4.3 | 4.8 4.1 2.3 | ||
RNBS2-3.5 | #6 | 3.7 | 6.6 | 12.3 | 4.3 | |||
RNBM2-3.5 | #6 | 3.7 | 6.6 | 16 | 7 | |||
RNBL2-3.5 | #6 | 3.7 | 8.5 | 16.8 | 7.75 | |||
RNBS2-4 | #8 | 4.3 | 6.6 | 16 | 7 | |||
RNBL2-4 | #8 | 4.3 | 8.5 | 16.8 | 7.75 | |||
RNBS2-5 | #10 | 5.3 | 8.5 | 16.8 | 7.75 | |||
RNBL2-5 | #10 | 5.3 | 9.5 | 16.8 | 7.25 | |||
RNB2-6 | 1/4 | 6.4 | 12 | 21.8 | 11 | |||
RNB2-8 | 5/16 | 8.4 | 12 | 21.8 | 11 | |||
RNB2-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 | |||
RNB2-12 | 1/2 | 13 | 19.2 | 31 | 16.9 | |||
More crimp terminal options.
FAQ
1. Q: Can you tell me more about your company?
A: We are professional cable factory in China, with almost 10 years experiences in the cable industry. we have strong engineer team, can provide technical support for customer.
2,Q: Can you produce custom cable assembly?
A: We can design and build connector/cable assembly per customer requirement, even can add your logo on the product.
3, Q: What’s your Minimum order QTY (MOQ)?
A: Normally 500 PCS, but we can support lower volume for sample stage.
4, Q: What’s the lead time (L/T ) of your manufacturing?
A: We provide short L/T service. Sample 1 wks, mass production 4 wks.
5, Q: How about your product quality?
A: We do pull test, bending test etc in to ensure the product stability, also do 100% function test on the cable in the manufacturing to ensure customer receive good quality goods.
Shipping term
We ship goods all over the word, via EMS, DHL,UPS.FedEx and TNT etc, customer can specify whichever they prefer.
Packing
1, standard export carton.
2, customized packing is also welcome.
Delivery
1, 5 working days for sample.
2, 7 working days for mass production goods.
3, Express, air, marine and customer specified forwards are available.
