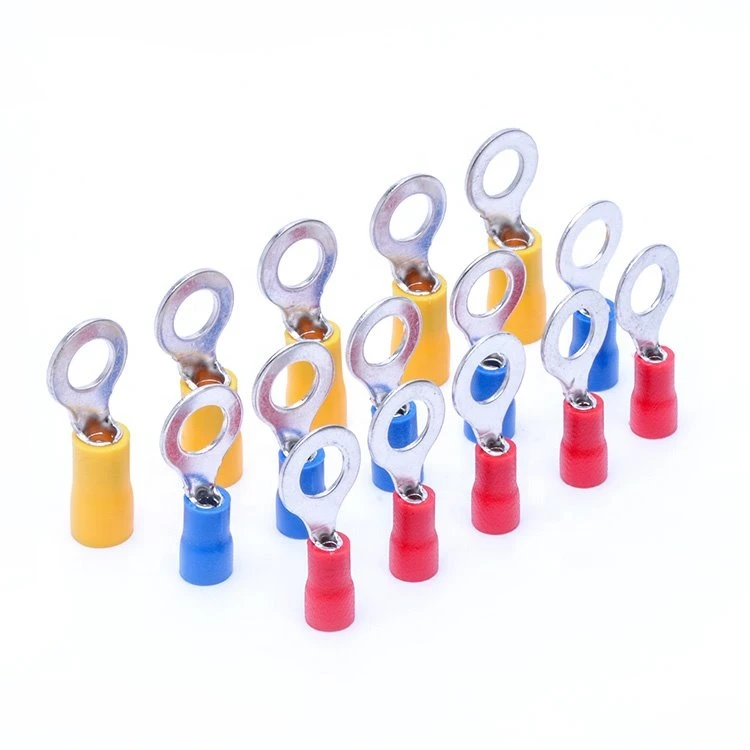

Copper Ring Lugs Insulated
Description
Our Copper Ring Lugs Insulated are important components of various electrical systems, mainly used for connecting cables. They are made of solid and durable copper alloy, with excellent chemical stability and durability, and will not cause any fire safety hazards when used. In addition, they have low resistivity and lower oxidation than other metals, making them excellent conductors.
Features
These Copper Ring Lugs Insulated are made of annealed electrolytic grade copper for maximum conductivity. Their tinned surfaces have corrosion protection, which can help you easily complete crimping or welding work, and require less maintenance in subsequent use. In addition, they use heavy structure terminals, which not only ensure reliable connection, but also facilitate wire insertion.
Details
Terminal Material: | Copper |
Plating: | Electro tin plated |
Insulation Material: | PVC, PA |
Type: | RV |
Feature: | Fixable, good elasticity, unable broken, high durability |
Certificate: | RoHS, CE， UL |
Application: | Electricity, communications, machinery, construction, petroleum, chemical, aviation, transportation, railway, transportation, automobile manufacturing, household appliances, electrical installations, computers etc. |
Feature: | 1.Fireproof, insulate, easy to use |
2.Made by high purity copper | |
Color: | Red, blue, black, yellow |
Function: | Electrically conductive and connection |
Working Temperature: | -40℃-105 ℃ |
MAXIMUM ELECTRIC CURRENT:
A.W.G. | 22 | 20 | 18 | 16 | 14 | 12 | 10 | 8 | 6 | 4 | 2 | 1/0 | 2/0 | 3/0 | 4/0 | 250 | 300 | 350 | 400 | 500 | 600 |
AMP. | 9 | 12 | 17 | 18 | 30 | 35 | 50 | 70 | 95 | 125 | 170 | 230 | 265 | 310 | 360 | 405 | 445 | 505 | 545 | 620 | 690 |
Specification
Cable Size:0.5-1.5mm2(A.W.G22-16) Max Current: Imax=19A | ||||||||
Material: Copper Material Thickness:0.75mm | ||||||||
| Item No | USA screw | Stud size mm | Dimension(mm) | Color | ||||
B | L | F | H | D∅ | ||||
RV1.25-3 | #4 | 3.2 | 5.7 | 17.8 | 4.95 | 10.0 | 4.3 | Red |
RVS1.25-3.5 | #6 | 3.7 | 5.7 | 17.8 | 4.95 | |||
RVM1.25-3.5 | #6 | 3.7 | 6.6 | 20.1 | 6.3 | |||
RVL1.25-3.5 | #6 | 4.3 | 8.0 | 21.5 | 7.0 | |||
RVS1.25-4 | #8 | 4.3 | 6.6 | 20.1 | 6.3 | |||
RVL1.25-4 | #8 | 4.3 | 8.0 | 21.5 | 7.0 | |||
RV1.25-5 | #10 | 5.3 | 8.0 | 21.5 | 7.0 | |||
RVL1.25-5 | #10 | 5.3 | 9.8 | 23.0 | 8.5 | |||
RV1.25-6 | 1/4 | 6.4 | 11.6 | 27.5 | 11.1 | |||
RV1.25-8 | 5/16 | 8.4 | 11.6 | 27.5 | 11.1 | |||
RV1.25-10 | 3/8 | 10.5 | 13.6 | 31.6 | 13.9 | |||
RV1.25-12 | 1/2 | 13.0 | 19.2 | 36.0 | 16.5 | |||
Cable Size:1.5-2.5mm2(A.W.G16-14) Max Current: Imax=27A Material: Copper Material Thickness:0.8mm | ||||||||
RV2-3 | #4 | 3.2 | 6.6 | 17.8 | 4.3 | 10.0 | 4.9 | Blue |
RVS2-3.5 | #6 | 3.7 | 6.6 | 17.8 | 4.3 | |||
RVM2-3.5 | #6 | 3.7 | 8.5 | 21.0 | 7.0 | |||
RVL2-3.5 | #6 | 3.7 | 6.6 | 22.5 | 7.75 | |||
RVS2-4 | #8 | 4.3 | 8.5 | 21.0 | 7.0 | |||
RVL2-4 | #8 | 4.3 | 8.5 | 22.5 | 7.75 | |||
RVS2-5 | #10 | 5.3 | 8.5 | 22.5 | 7.75 | |||
RVL2-5 | #10 | 5.3 | 9.5 | 22.5 | 7.25 | |||
RV2-6 | 1/4 | 6.4 | 12.0 | 27.6 | 11.0 | |||
RV2-8 | 5/16 | 8.4 | 12.0 | 27.6 | 11.0 | |||
RV2-10 | 3/8 | 10.5 | 13.6 | 30.2 | 13.9 | |||
RV2-12 | 1/2 | 13.0 | 19.2 | 35.4 | 16.5 | |||
Cable Size:2.5-4mm2(A.W.G14-12) Max Current: Imax=37A Material: Copper Material Thickness:1.0mm | ||||||||
RV3.5-4 | #8 | 4.3 | 8 | 24.5 | 7.7 | 13.0 | 6.2 | Black |
RVS3.5-5 | #10 | 5.3 | 8 | 24.5 | 7.7 | |||
RVL3.5-5 | #10 | 5.3 | 12 | 27.9 | 7.7 | |||
RV3.5-6 | 1/4 | 6.4 | 12 | 27.9 | 7.7 | |||
Cable Size:4-6mm2(A.W.G12-10) Max Current: Imax=48A Material: Copper Material Thickness:1.0mm | ||||||||
RV5.5-3.5 | #6 | 3.7 | 7.2 | 21.4 | 5.9 | 13.0 | 6.7 | Yellow |
RVS5.5-4 | #8 | 4.3 | 7.2 | 21.4 | 5.9 | |||
RVL5.5-4 | #8 | 4.3 | 9.5 | 25.5 | 8.3 | |||
RV5.5-5 | #10 | 5.3 | 9.5 | 25.5 | 8.3 | |||
RV5.5-6 | 1/4 | 6.4 | 12.0 | 31.5 | 13.0 | |||
RV5.5-8 | 5/16 | 8.4 | 15.0 | 33.7 | 13.7 | |||
RV5.5-10 | 3/8 | 10.5 | 15.0 | 33.7 | 13.7 | |||
RV5.5-12 | 1/2 | 13.0 | 19.2 | 38.1 | 16.0 | |||
FAQ
1. Q: Can you tell me more about your company?
A: We are professional cable factory in China, with almost 10 years experiences in the cable industry. we have strong engineer team, can provide technical support for customer.
2,Q: Can you produce custom cable assembly?
A: We can design and build connector/cable assembly per customer requirement, even can add your logo on the product.
3, Q: What’s your Minimum order QTY (MOQ)?
A: Normally 500 PCS, but we can support lower volume for sample stage.
4, Q: What’s the lead time (L/T ) of your manufacturing?
A: We provide short L/T service. Sample 1 wks, mass production 4 wks.
5, Q: Why choose us? What is your advantage?
A: We are professional cable factory in China, with almost 10 years experiences in the cable industry. we have strong engineer team, can provide technical support for customer.
Quality products: High quality raw material
Competitive price: Factory price
OEM service: Offer and welcome OEM service
Thoughtful service : Fast response within 24hours
Quick delivery time: Strict production plan and delivery date.
6, Q: How about your product quality?
A: We do pull test, bending test etc in to ensure the product stability, also do 100% function test on the cable in the manufacturing to ensure customer receive good quality goods.
Shipping term:
We ship goods all over the word, via EMS, DHL,UPS.FedEx and TNT etc, customer can specify whichever they prefer.
Packing
1, standard export carton.
2, customized packing is also welcome.
Delivery
1, 5 working days for sample.
2, 7 working days for mass production goods.
3, Express, air, marine and customer specified forwards are available.
