Fork Terminal Insulated



Product Introduction: Fork Terminal Insulated is an electrical connector widely used for the connection and termination of various wires and cables. These terminal connectors are designed to provide reliable electrical connections while offering insulation protection to ensure safety and high performance.



Features:

1. Durability: Our fork terminal connectors are made from durable metal materials, capable of withstanding harsh environments and long-term use, ensuring long-lasting performance stability.

2. Easy Installation: Features a user-friendly design for quick installation without the need for specialized tools.

3. Wide Range of Sizes and Specifications: We offer a variety of sizes and specifications for fork terminal connectors to meet the requirements of various applications.



Fork Terminal material: copper with Ni plating + Vinyl insulation

Standard: UL, IPC-A-620

Certification: RoHS/REACH



Specification

MAXIMUM ELECTRIC CURRENT:
A.W.G.	22	20	18	16	14	12	10
AMP.	9	12	17	18	30	35	50



MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS MAX.

INSULATION MATERIAL: VINYL

INSULATION COLOR:

22-16A.W.G.: RED

16-14A.W.G.: BLUE

12-10A.W.G.: YELLOW

TERMINAL MATERIAL: COPPER

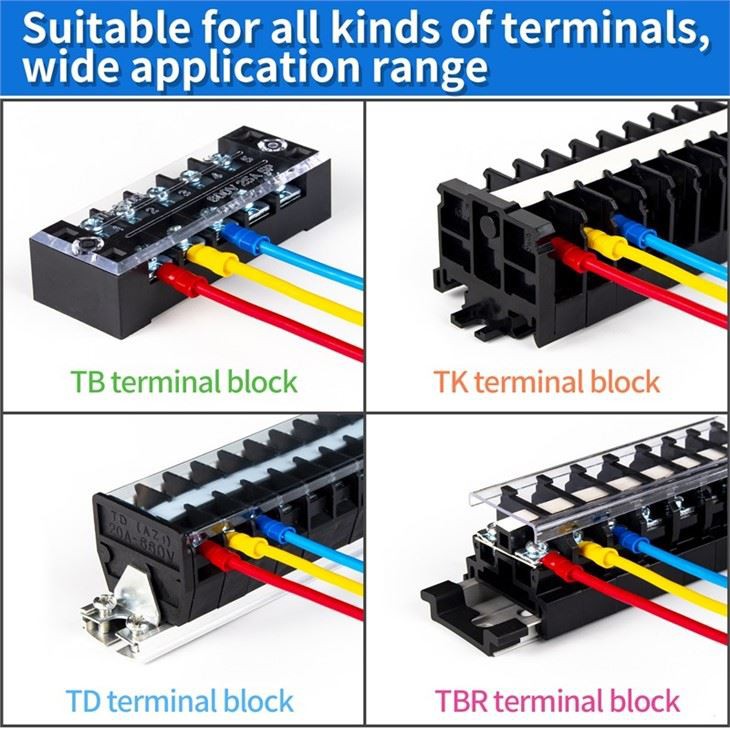

Fork Terminal is normally used to attach a wire or wires to a stud, bus bar, or another part of an electrical system. A fork terminal is commonly used to help prevent frayed wires and offers a high level of protection, but how to select the correct terminal size with corresponding stud? Please refer to the below table.



Applications:

• Home electrical repairs and installations
• Electronics manufacturing
• Automotive electrical systems
• Industrial automation
• Aerospace industry
• Power distribution and transmission



Export Services:

• Customizing product specifications to meet the standards and requirements of different countries/regions.
• Fast and reliable international logistics to ensure safe product delivery.
• Professional documentation and certification support for export orders.
• Customer support team for timely technical assistance and issue resolution.

No matter where you are, we are committed to providing you with Fork Terminal Insulated products and excellent customer service.



If you are interested in our products or need more information, please feel free to contact us. We look forward to working with you to meet your electrical connection needs.
