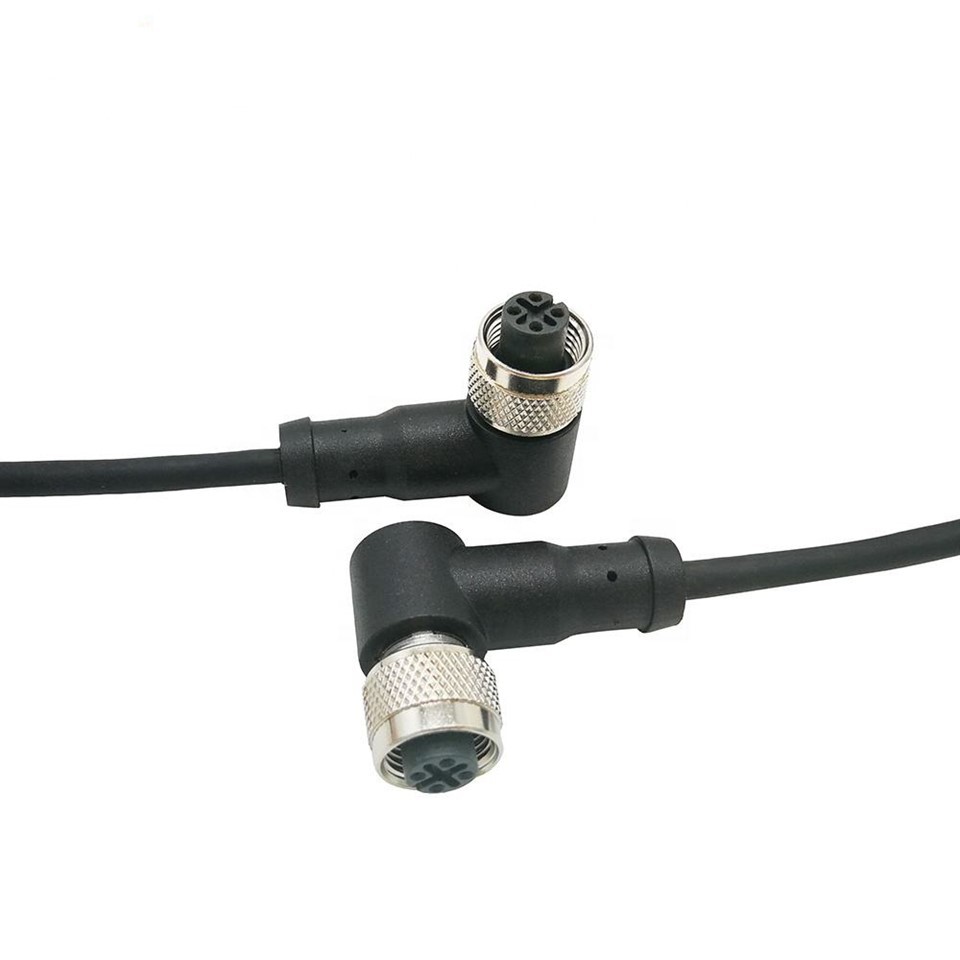

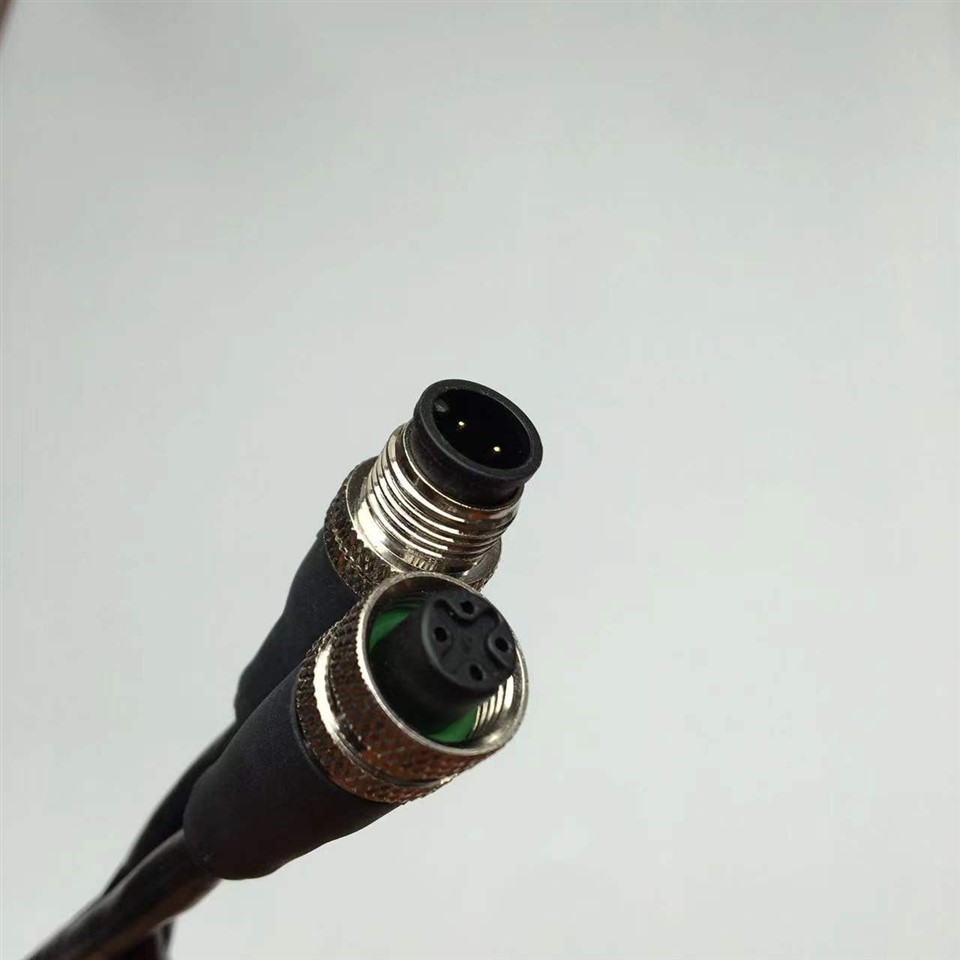

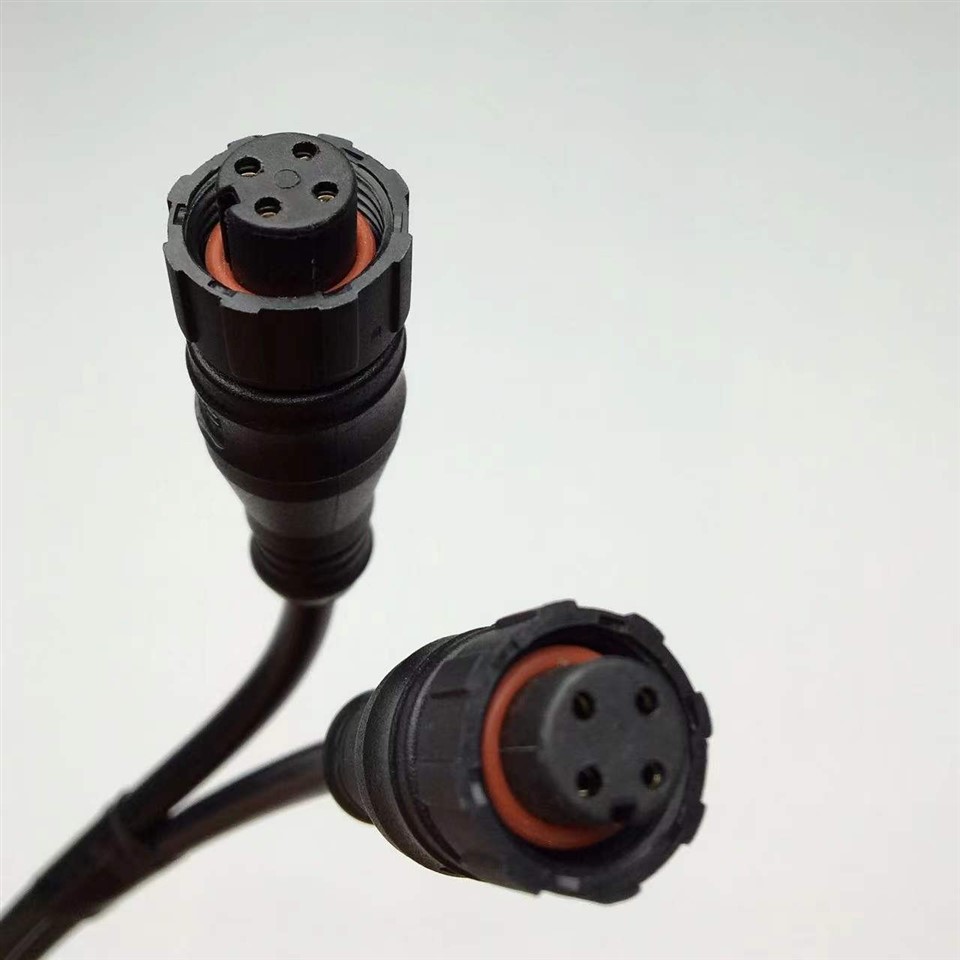

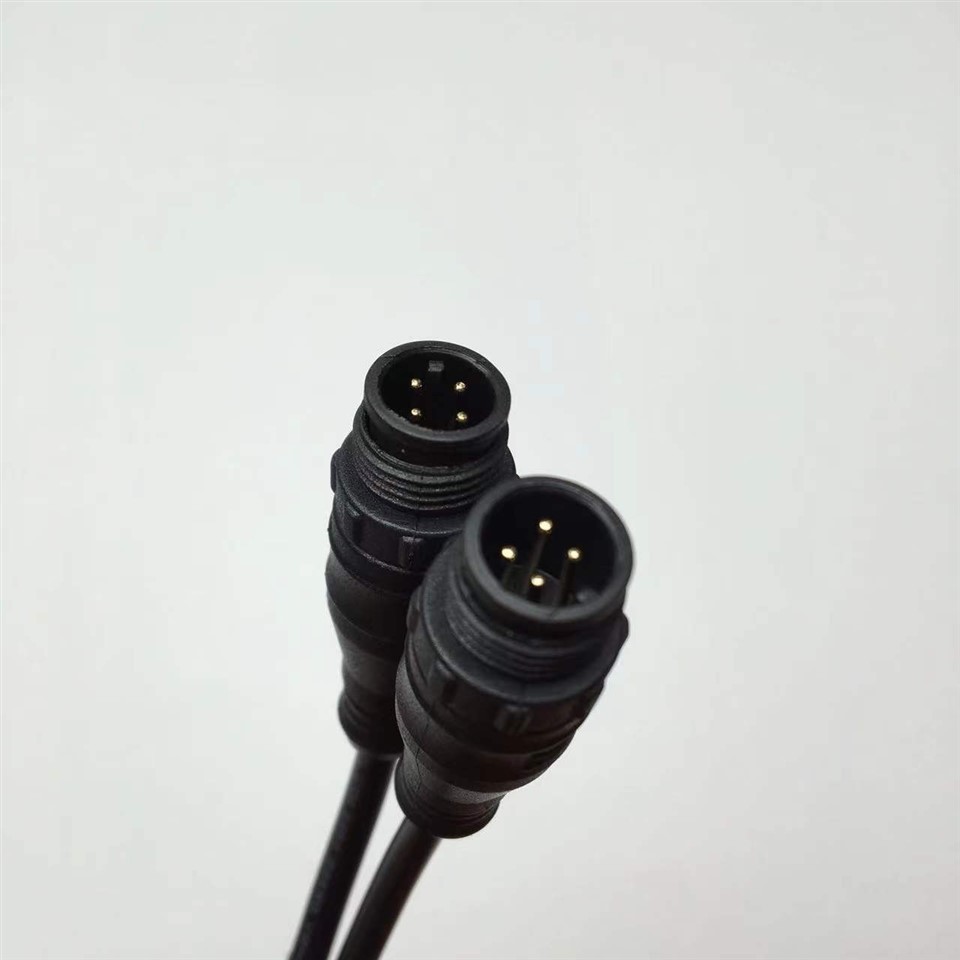

Custom M12 Cable
Custom M12 Cable Assembly – High-Performance Industrial Connectivity Solutions
Product Overview
Custom M12 cable assemblies are engineered to deliver robust, waterproof connectivity for demanding industrial environments. Designed with modular flexibility, these cables support a wide range of pin configurations, materials, and form factors to meet specific application requirements-from factory automation and robotics to IIoT (Industrial Internet of Things) systems. With IP67/IP68 protection, superior EMI shielding, and compliance with international standards, our M12 solutions ensure reliable data and power transmission in harsh conditions.
Key Features & Benefits
Fully Customizable: Tailored pin counts, cable lengths, jacket materials, and connector coding.
High Durability: Resistant to vibration, moisture, chemicals, and extreme temperatures.
Optimized for Industry 4.0: Supports high-speed data transfer (up to 10 Gb/s with X-coding) and real-time IIoT communication.
Global Compliance: Meets IEC, RoHS, REACH, and industry-specific certifications.
Technical Parameters (Chart Summary)
表格
|
Parameter |
Options / Specifications |
|
Pin Count |
2 – 17 pins (customizable) |
|
Connector Coding |
A, B, C, D, S, T, X (application-specific) |
|
Current Rating |
Up to 16 A (depending on pin configuration) |
|
Voltage Rating |
30 V – 250 V AC/DC |
|
Temperature Range |
–40 °C to +105 °C (extended options available) |
|
Ingress Protection |
IP67 / IP68 / IP69K |
|
Cable Jacket |
PVC, PUR, TPE, or hybrid materials |
|
Shielding |
Braided, foil, or combination (≥90% coverage) |
|
Bending Cycles |
>5 million (flexible series) |
|
Data Speed |
Up to 10 Gb/s (X‑coded) |
|
Standards |
IEC 61076‑2‑104, ISO 15170, IPC‑A‑620 |
Application Areas
Industrial Automation: Sensors, actuators, PLCs, motor drives, robotic arms.
Networking & Fieldbus: PROFIBUS, PROFINET, EtherNet/IP, CC‑Link.
Outdoor & Harsh Environments: Agricultural machinery, renewable energy systems, marine equipment.
Transportation: Railway signaling, electric vehicle charging, fleet telematics.
Smart Manufacturing: IIoT gateways, edge computing devices, predictive maintenance systems.
Why Choose Our Custom M12 Cables?
Design Flexibility
Select from straight, right‑angle, or custom‑molded overmolds; choose cable length (0.1 m to 100 m+), color coding, and labeling.
Performance‑Driven Materials

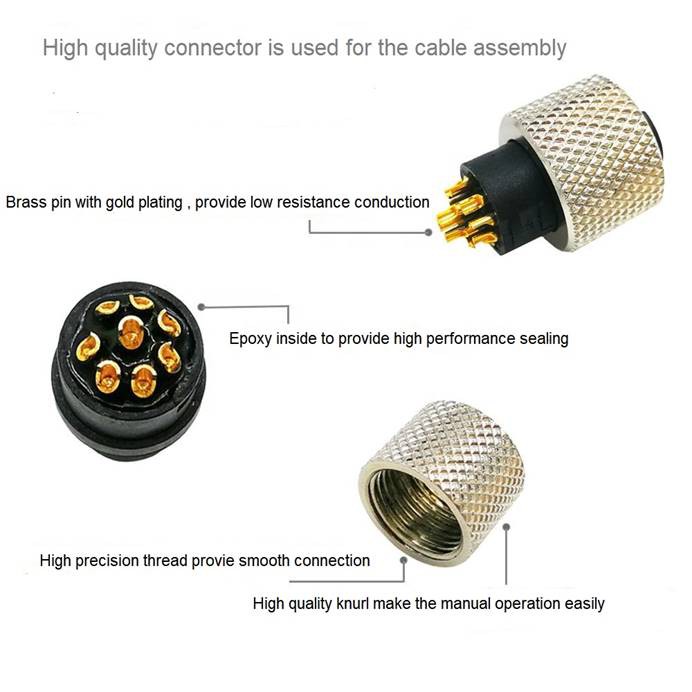

Contacts: Gold‑plated copper alloy for low resistance and corrosion resistance.
Insulator: High‑temperature PA66+GF or PEEK for stable dielectric performance.
Housing: Reinforced nylon or metal alloys with nickel/chrome plating.
Cable: Oil‑resistant, UV‑stable, and halogen‑free variants available.
Rigorous Quality Assurance
Each assembly undergoes 100% electrical testing, pull‑force validation, bending/ torsion tests, and environmental stress screening. Batch traceability and full test reports are provided.
Fast Turnaround & Global Support
Prototypes: 3–5 working days.
Volume Production: 2–4 weeks (flexible scheduling).
Logistics: DHL, FedEx, UPS, TNT, or sea/air freight with customs documentation.
SEO‑Optimized Content for Google Ranking
Title Tag: Custom M12 Cable Assembly Manufacturer – IP68 Waterproof Industrial Cables
Meta Description: Get tailor‑made M12 cable harnesses with IP67/IP68 rating, 2‑17 pins, A/B/C/D/X coding. Fast delivery, ISO‑certified. Ideal for automation, robotics, IIoT.
Target Keywords: custom M12 cable, M12 cable harness, waterproof M12 connector, industrial M12 assembly, M12 Ethernet cable, high‑speed M12, IIoT connectivity, OEM M12 cables.
Header Structure
H1: Custom M12 Cable Assemblies for Harsh Industrial Environments
H2: Technical Specifications & Customization Options
H2: Applications in Automation, Robotics, and IIoT
H2: Quality Testing & Compliance
H2: Ordering Guide & Lead Times
Content Strategy
Use bulleted lists for features/benefits.
Include comparison tables (e.g., coding types vs. applications).
Embed internal links to "M12 Connector Coding Guide" or "IP Ratings Explained."
Add customer case‑study snippets (e.g., "Used in automotive welding lines for 5+ years").
Publish supporting blog posts: "How to Select M12 Cables for PROFINET," "Top 5 Mistakes in M12 Cable Installation."
Ordering & Support
MOQ: As low as 50 pcs for custom designs.
Packing: Anti‑static bags, labeled reels, or custom‑printed boxes.
Documentation: 3D drawings, wiring diagrams, test certificates, RoHS/REACH declarations.
Warranty: 24‑month performance warranty, lifetime technical support.
Shipping term:
We ship goods all over the word, via EMS, DHL,UPS.FedEx and TNT etc, customer can specify whichever they prefer.
Packing
1, standard export carton.
2, customized packing is also welcome.
Delivery
1, 5 working days for sample.
2, 7 working days for mass production goods.
3, Express, air, marine and customer specified forwards are available.
