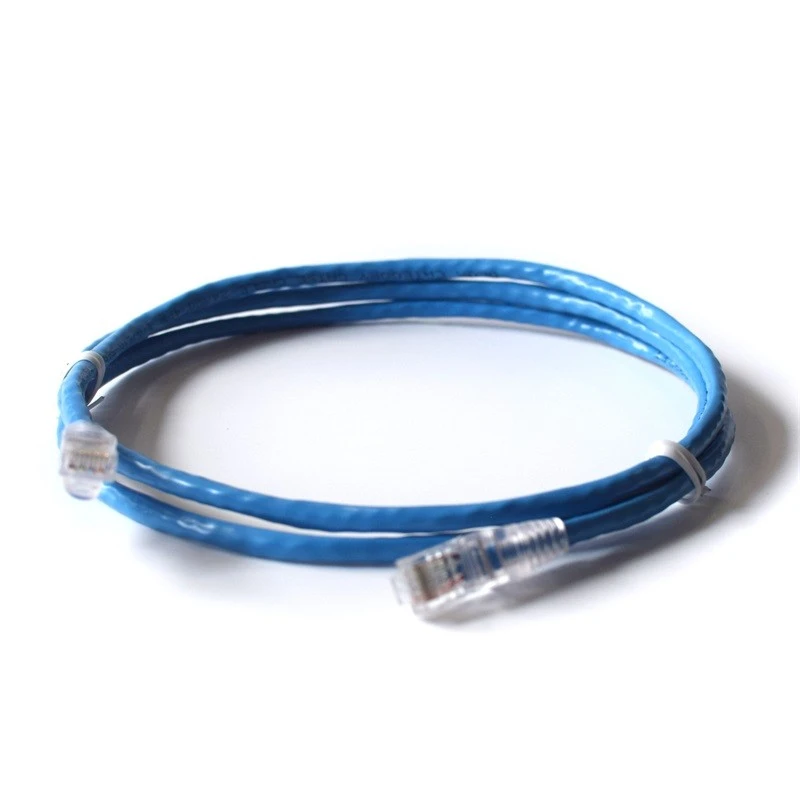

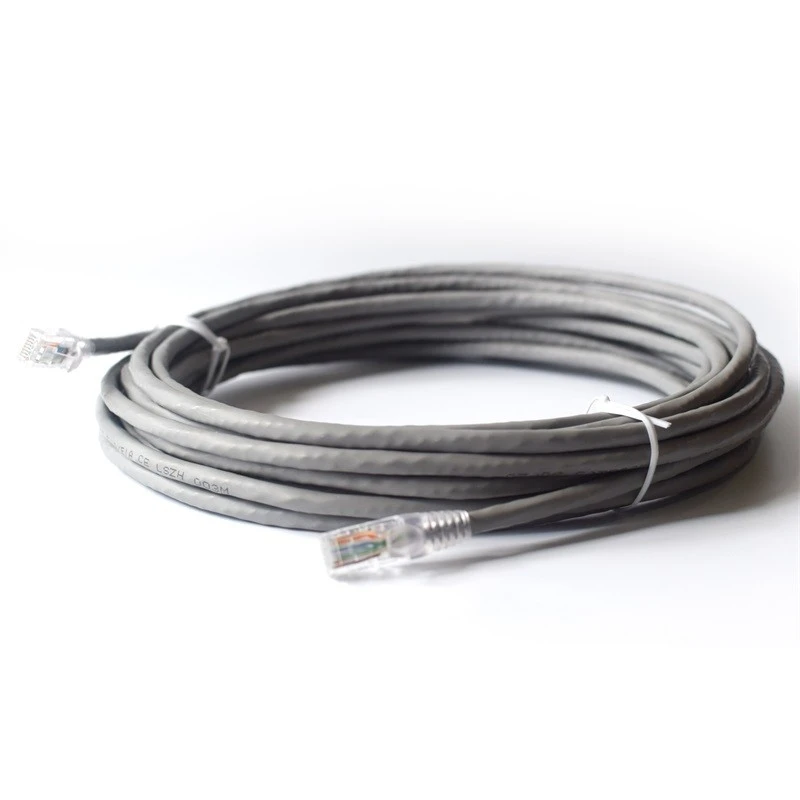

Cat 6E Network Cable
Premium Cat 6E Network Cable Assembly – High-Speed Ethernet Solution
Our Cat 6E LAN cable assembly is engineered to deliver exceptional performance for modern high-bandwidth applications. Designed with superior shielding and precision connectors, it ensures reliable, high-speed data transmission with minimal interference, making it ideal for demanding home, office, and data center environments.
Key Features
Enhanced Bandwidth & Speed: Supports frequencies up to 550 MHz and data rates up to 10 Gbps over 55 meters, perfect for 4K/8K streaming, large file transfers, and low-latency gaming.
Advanced Shielding: Utilizes Foiled Twisted Pair (FTP) or Shielded Foiled Twisted Pair (SFTP) construction to significantly reduce crosstalk and electromagnetic interference.
Durable Build: Features a robust LSZH (Low Smoke Zero Halogen) jacket, resistant to wear, UV exposure, and harsh environmental conditions.

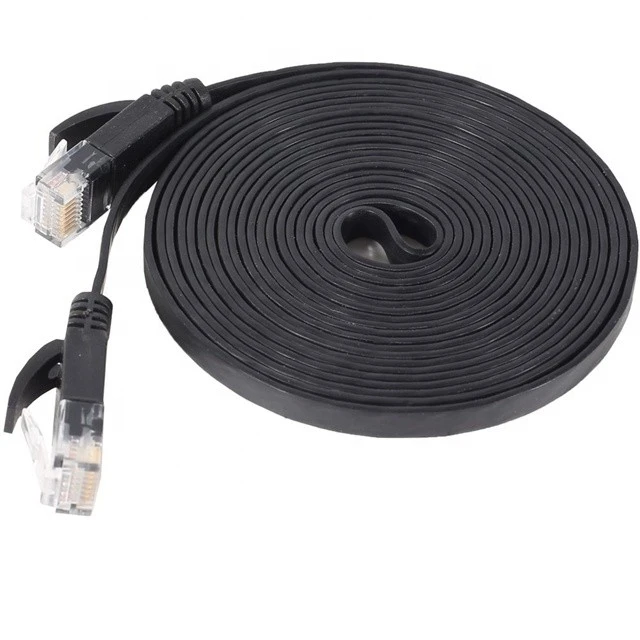

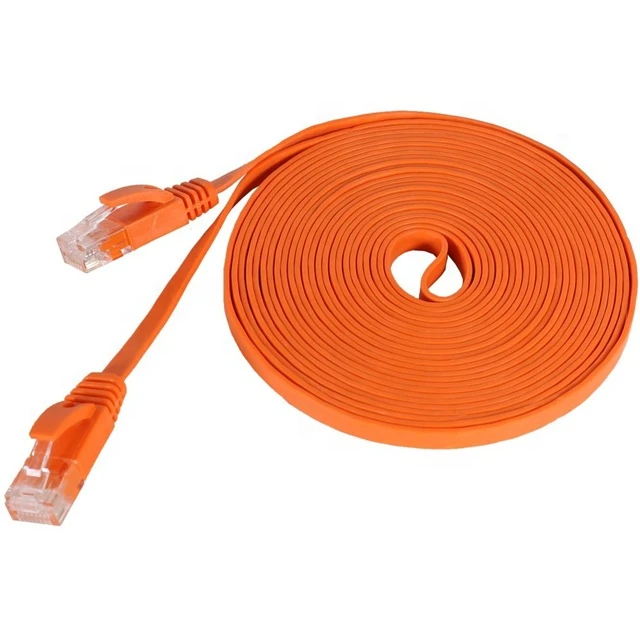

Flexible Design: Available in round and ultra-slim flat profiles, allowing easy routing under carpets, along baseboards, or in tight spaces.
Universal Compatibility: Backward compatible with Cat 5e, Cat 6, and Cat 5 standards, ensuring seamless integration with existing network infrastructure.
Technical Specifications
|
Parameter |
Specification |
|
Cable Category |
Cat 6E (Enhanced) |
|
Connector Type |
8P8C RJ45 Gold-Plated (50µ") |
|
Conductor Material |
100% Pure Bare Copper (Oxygen-Free) |
|
Shielding Type |
FTP / SFTP (Optional: UTP) |
|
Jacket Material |
FR PVC LSZH (Flame Retardant, Low Smoke Zero Halogen) |
|
Cable Diameter |
Round: 6.2 mm; Flat: 1.9 mm × 7.0 mm |
|
Wire Gauge |
24 AWG (Round), 32 AWG (Flat) |
|
Operating Temperature |
-40°C to +105°C |
|
Voltage Rating |
60V AC/DC |
|
Impedance |
100 Ω ± 10 Ω (1–350 MHz) |
|
Max Data Rate |
10 Gbps (up to 55 m) |
|
Bandwidth |
550 MHz |
|
Delay Skew |
≤ 30 ns/100 m |
|
Standards Compliance |
TIA/EIA 568-C.2, ISO/IEC 11801, RoHS, REACH, CE, UL, FCC |
Electrical Performance
|
Characteristic |
Frequency Range |
Value |
|
Insertion Loss (Attenuation) |
1–250 MHz |
≤ 40 dB |
|
Near-End Crosstalk (NEXT) |
1–250 MHz |
≥ 44 dB |
|
Return Loss |
1–250 MHz |
≥ 20 dB |
|
Power Sum Alien Crosstalk (PS-ANEXT) |
1–250 MHz |
≥ 50 dB |
|
Propagation Delay |
1–250 MHz |
≤ 548 ns/100 m |
|
DC Loop Resistance |
N/A |
≤ 14 Ω/100 m |
Applications
Data Centers:
High-density server connections and switch-to-switch links.
Office Networks:
Reliable backbone cabling for VoIP, video conferencing, and cloud services.
Smart Homes:
Supports IoT devices, security systems, and home entertainment setups.
Gaming & Streaming:
Delivers ultra-low latency and stable connections for competitive gaming and 4K/8K media.
Industrial Environments:
Withstands temperature extremes and mechanical stress in automation and control systems.
Customization Options
We offer extensive OEM/ODM services to meet specific project requirements:
Length: Custom cuts from 0.5m to 100m.

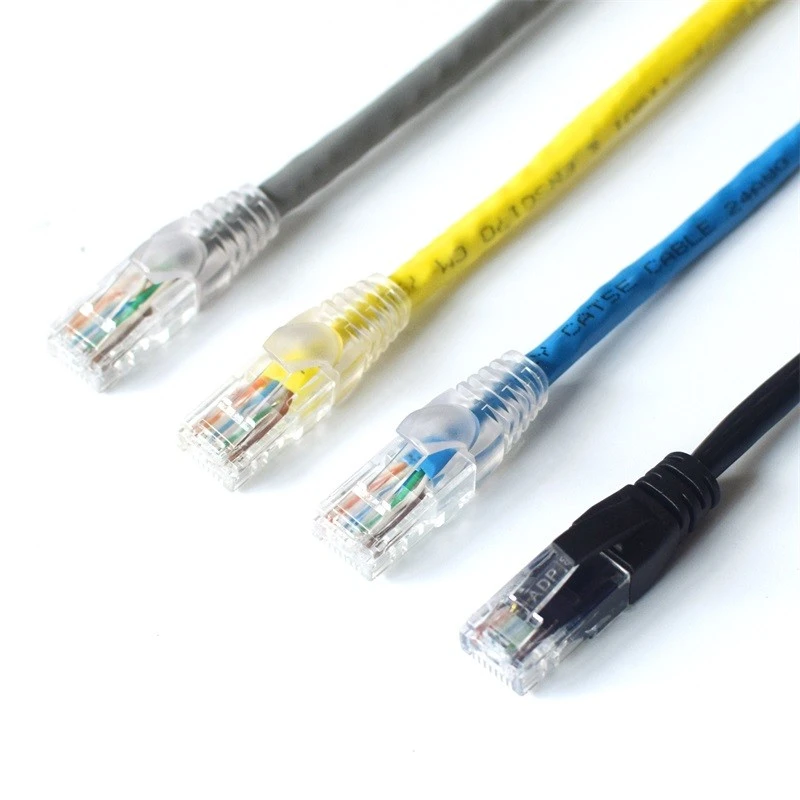

Color: Standard colors (black, blue, gray, white) or custom Pantone-matched jackets.

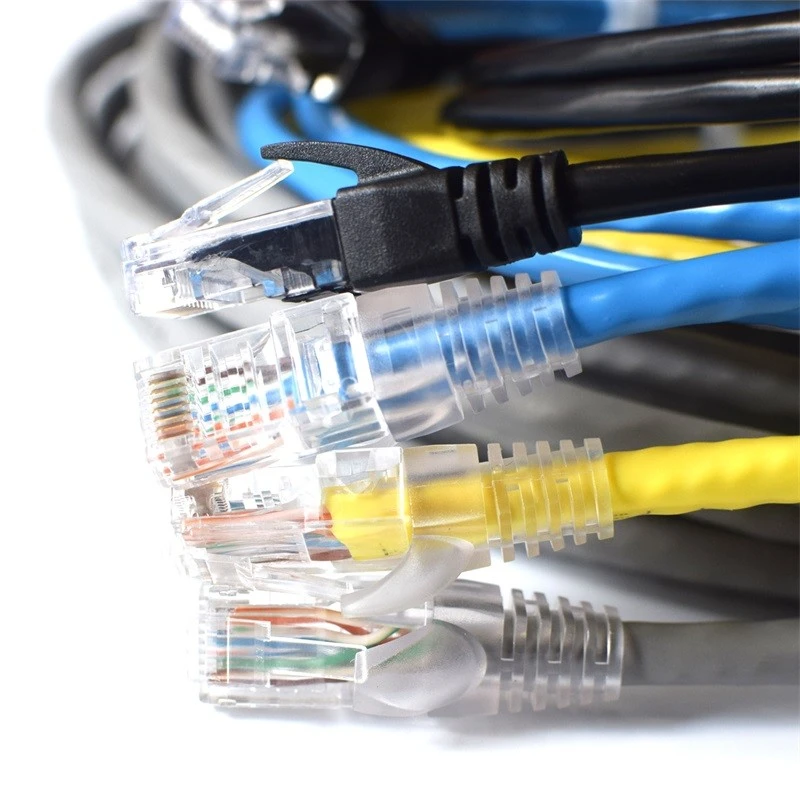

Connectors: protective boots, shielded metal housings, or angled plugs.
Packaging: Bulk reels, individual poly bags, retail clamshells, or branded gift boxes.
Certifications: Additional compliance with UL, VDE, CSA, or industry-specific standards upon request.
Quality Assurance
100% Electrical Testing: Each cable undergoes open/short, continuity, and performance validation.
Mechanical Stress Tests: Pull force (≥ 100 N), bend cycle (≥ 750 cycles), and crush resistance checks.
Environmental Testing: Verified for performance across temperature, humidity, and UV exposure ranges.
Our factory certification and quality assurance:
UL certification
IPC-A-620 certification
ISO9001 / ISO14001 /ISO13485 certified factory
All products are 100% electric tested
Top-cable UL and ISO certificate
Top-cable test equipment
FAQ
Q: What is the difference between Cat 6 and Cat 6E?
A: Cat 6E (Enhanced) offers improved alien crosstalk suppression and higher frequency support (550 MHz vs. 250 MHz), ensuring more stable performance in dense cable bundles.
Q: Is the cable suitable for outdoor use?
A: Yes, with optional UV-resistant and waterproof jackets, it can be deployed in outdoor or industrial settings.
Q: Do you provide free samples?
A: Yes, we offer complimentary samples; customers only cover shipping costs.
Q: What is the minimum order quantity?
A: MOQ is 500 units, with flexible smaller batches for evaluation.
Q: How long is the lead time?
A: Samples ship within 5–7 business days; production orders typically complete in 3–4 weeks.
Packaging & Shipping
Packaging: Anti-static poly bags, eco-friendly boxes, or custom-branded packaging.
Shipping: Global delivery via DHL, FedEx, UPS, or sea freight, with real-time tracking.
Delivery
1, 5 working days for sample.
2, 7 working days for mass production goods.
3, Express, air, marine and customer specified forwards are available.
