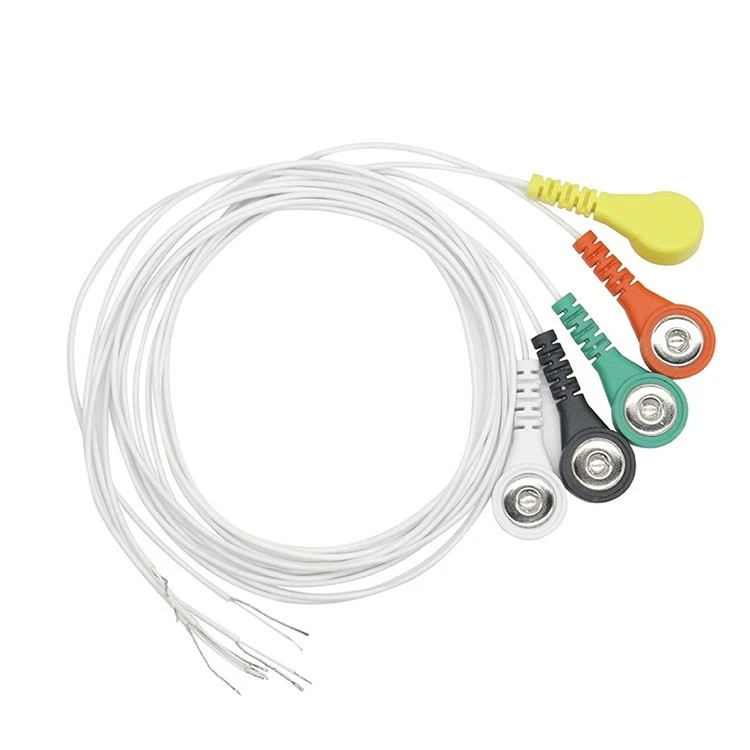

Custom ECG Patient Cable

Custom ECG Patient Cable - Premium Medical Cable Solutions



Product Overview

Our Custom ECG Patient Cables represent the pinnacle of medical-grade connectivity solutions, engineered specifically for precise cardiac monitoring applications. These specialized trunk cables serve as the critical link between patient electrodes and monitoring equipment, ensuring accurate transmission of vital electrophysiological signals with uncompromising safety and reliability.

Designed for healthcare environments where performance is non-negotiable, our cables meet rigorous medical standards while offering extensive customization options for OEM and ODM partners worldwide.

‌Superior Signal Integrity‌

Low-noise transmission for accurate ECG waveform reproduction

Shielded construction minimizes electromagnetic interference

Stable impedance characteristics across entire cable length



‌Enhanced Patient Safety‌

Medical-grade materials with biocompatibility options

Reduced risk of micro-shock through proper insulation

Hypoallergenic components suitable for sensitive skin



‌Durability & Reliability‌

Withstands repeated sterilization cycles

High-flex design for extended clinical use

Robust strain relief at connection points



‌Customization Flexibility‌

Tailored connector configurations

Variable cable lengths and wire gauges

Brand-specific coloring and labeling

Technical Specifications

Parameter	Specification	Options Available
‌Connector Type‌	Medical-grade snap terminals	Custom monitor-specific connectors
‌Wire Construction‌	Multi-strand oxygen-free copper	Shielded/unshielded configurations
‌Insulation Material‌	Medical-grade PVC/TPU/TPE	FDA-compliant materials available
‌Temperature Range‌	-40°C to +105°C	Extended ranges upon request
‌Cable Length‌	Customizable	1m to 5m standard, extended lengths possible
‌Conductor Plating‌	Tin, silver, or gold plating	Selected based on application needs
‌Water Resistance‌	IP ratings available	IP67/IP68 for specialized applications
‌Certifications‌	RoHS, REACH, UL, CE Medical	ISO 13485 manufacturing compliance
‌Pull Strength‌	>50N at connection points	Enhanced versions available
‌Bend Cycle Life‌	>50,000 cycles minimum	Tested per IEC 60601-1 standards

Manufacturing Excellence

‌Quality Assurance‌

100% functional testing before shipment

Automated optical inspection of terminations

Batch traceability throughout production



‌Compliance & Standards‌

Manufactured under ISO 13485 quality systems

Meets IEC 60601-1 medical electrical equipment standards

IPC/WHMA-A-620 certification for cable assembly



‌Custom Engineering Support‌

Dedicated R&D team for application-specific solutions

Prototype development within 5 business days

DFM (Design for Manufacturing) analysis included

Application Versatility

‌Clinical Environments‌

Hospital patient monitoring systems

Emergency department cardiac telemetry

Ambulatory ECG monitoring devices

Stress test equipment

Holter monitor systems



‌Specialized Medical Applications‌

Neonatal and pediatric monitoring

Veterinary cardiology equipment

Remote patient monitoring solutions

Research and clinical trial applications

Ordering & Customization Process

‌Step 1: Requirements Analysis‌

Application-specific consultation

Technical parameter definition

Compliance requirement review



‌Step 2: Prototype Development‌

3D modeling and design

Functional prototype production

Validation testing and approval



‌Step 3: Production & Delivery‌

Scalable manufacturing capacity

Stringent quality control checks

Global logistics support



‌Lead Times‌

Prototypes: 5-7 business days

Production quantities: 3-4 weeks

Rush services available

Global Support & Services

‌Technical Assistance‌

24/7 engineering support

On-site installation guidance

Troubleshooting documentation



‌Warranty & Reliability‌

2-year comprehensive warranty

Failure analysis and reporting

Continuous improvement programs



‌Supply Chain Solutions‌

Consignment inventory programs

Kanban and JIT delivery options

Multi-region distribution centers



​



Our factory certification and quality assurance:

UL certification

IPC-A-620 certification

ISO9001 / ISO14001 /ISO13485 certified factory

All products are 100% electric tested

​​​



​

​Shipping term:

We ship goods all over the word, via EMS, DHL,UPS.FedEx and TNT etc, customer can specify whichever they prefer.



Packing

1, standard export carton.

2, customized packing is also welcome.



Delivery

1, 5 working days for sample.

2, 7 working days for mass production goods.

3, Express, air, marine and customer specified forwards are available.
