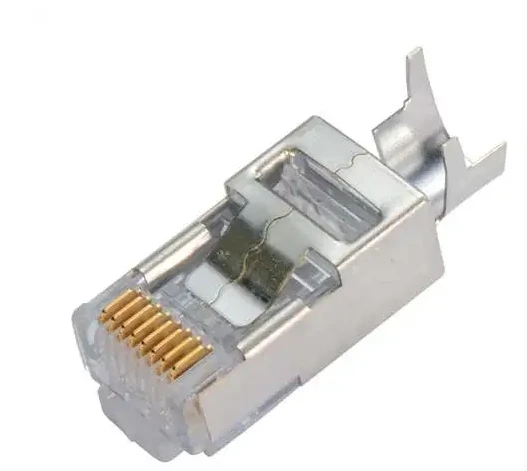

The malfunction of the Ethernet cable crystal head (RJ45 connector) may be caused by various reasons. Understanding the causes and solutions of these faults is crucial for ensuring the stability and reliability of network connections. This article will analyze the common causes and solutions of network cable crystal head failures.
1, Poor terminal connection
Reason: The metal sheet inside the crystal head did not make proper contact with the copper core in the network cable, resulting in poor or no contact at all.
Solution: Remake the crystal head, ensure that the network cable is inserted in the correct order, and use a professional crimping tool to press the crystal head firmly.
2, Bent or broken pins
Reason: The pins inside the crystal head may bend or break due to external forces such as compression or impact.
Solution: Replace the crystal head with a new one to avoid applying unnecessary pressure during use.
3, Oxidation or corrosion
Reason: Prolonged exposure of the crystal head to a humid environment can cause oxidation or corrosion of the metal parts.
Solution: Use an alcohol swab to clean the crystal head. If the corrosion is severe, a new crystal head needs to be replaced.
4, Line sequence error
Reason: When making crystal heads, the wire sequence of the network cable was not arranged according to the standard (such as T568A or T568B).
Solution: Remake the crystal head to ensure consistent wire sequence at both ends and compliance with T568A or T568B standards.
5, Network cable quality issues
Reason: Poor quality network cables or crystal heads were used, resulting in unstable signal transmission.
Solution: Replace high-quality network cables and crystal heads to ensure that the product meets relevant standards.
6, Physical damage
Reason: The crystal head may be physically damaged during use, such as dropping or impact.
Solution: Check for visible damage to the crystal head and replace it with a new one if necessary.
7, Poor shielding
Reason: For shielded network cables, the crystal head is not properly grounded or the shielding layer is not connected to the shielding layer of the crystal head.
Solution: Ensure that the shielding layer is correctly connected to the crystal head when making the shielded network cable crystal head, and ensure good grounding.
8, Excessive contact resistance
Reason: The contact points inside the crystal head have increased contact resistance due to prolonged use or quality issues.
Solution: Clean the crystal head or replace it with a new one to reduce contact resistance.
9, Environmental interference
Reason: Strong magnetic fields or electromagnetic interference (EMI) affect the signal transmission of the crystal head.
Solution: Use a shielded Ethernet cable and ensure that the crystal head is properly grounded, or take other measures to reduce interference.
10, Network device incompatibility
Reason: The crystal head or network cable is not compatible with the network device, resulting in connection failure.
Solution: Check the requirements of network devices to ensure the correct crystal head and network cable specifications are used.
11, Operational error
Reason: Improper operation during the production of crystal heads, such as cutting the thread too short or pressing the thread incorrectly.
Solution: Carefully read the production tutorial to ensure that each step is correct and error free.
12, Not reaching the standard length
Reason: The reserved length of the cable for the crystal head is insufficient, resulting in insufficient compression.
Solution: Remake the crystal head and ensure sufficient cable length is retained.
→ Maintenance suggestion:
1. Regular inspection: Regularly check the condition of the crystal head, promptly identify and address any issues.
2. Proper storage: When storing crystal heads, avoid humid and high-temperature environments.
3. Professional tools: Use professional tools (such as crimping pliers) to make crystal heads and ensure quality.
4. Avoid external forces: Try to avoid applying external forces to the crystal head during use.
