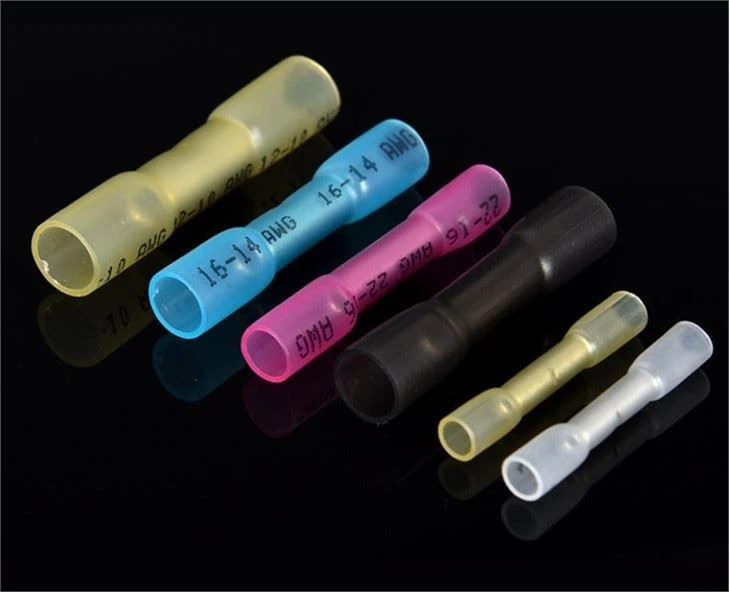

Heat Shrinkable Butt Splice Terminal
Heat shrinkable butt splice terminal
Specification
Terminal materia: Copper
Insulation: HD PE
Wire range: 26~8 AWG
Max Temperature rating: 105°C
Max Voltage rating: 600V
Standard: UL, IPC-A-620
Certification: RoHS/REACH
Max electrical voltave rating: 600 VOLTS MAX.
Heat shrinkable butt splice terminal Insulation color option:
26-22A.W.G.: 22-16A.W.G.: RED
16-14A.W.G.: BLUE
12-10A.W.G.: YELLOW
8A.W.G.: RED
Max current table
A.W.G. | 26 | 24 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | 8 |
AMP. | 5.5 | 7 | 9 | 12 | 17 | 18 | 30 | 35 | 50 | 70 |
Heat shrinkable butt splice terminal dimension
WIRE | ITEM NO. | DIMENSION inch(mm) | INSULATED | Q'TY | |
RANGE | COLOR | BOX | |||
A.W.G. | |||||
mm2 | d2 | L | |||
26-22 | TC-BHT0.5 | 0.051 | 1.138 | CLEAR | 1000 |
A.W.G. | 1.3 | 28.9 | |||
0.2-0.5 | |||||
mm2 | |||||
22-16 | TC-BHT1 | 0.067 | 1.417 | RED | 1000 |
A.W.G. | 1.7 | 36 | |||
0.5-1.5 | |||||
mm2 | |||||
16-14 | TC-BHT2 | 0.091 | 1.417 | BLUE | 500 |
A.W.G. | 2.3 | 36 | |||
1.5-2.5 | |||||
mm2 | |||||
12-10 | TC-BHT5 | 0.134 | 1.614 | YELLOW | 500 |
A.W.G. | 3.4 | 41 | |||
44657 | |||||
mm2 | |||||
8 | TC-BHT8 | 0.181 | 1.929 | RED | 250 |
A.W.G. | 4.6 | 49 | |||
8 | |||||
mm2 | |||||
